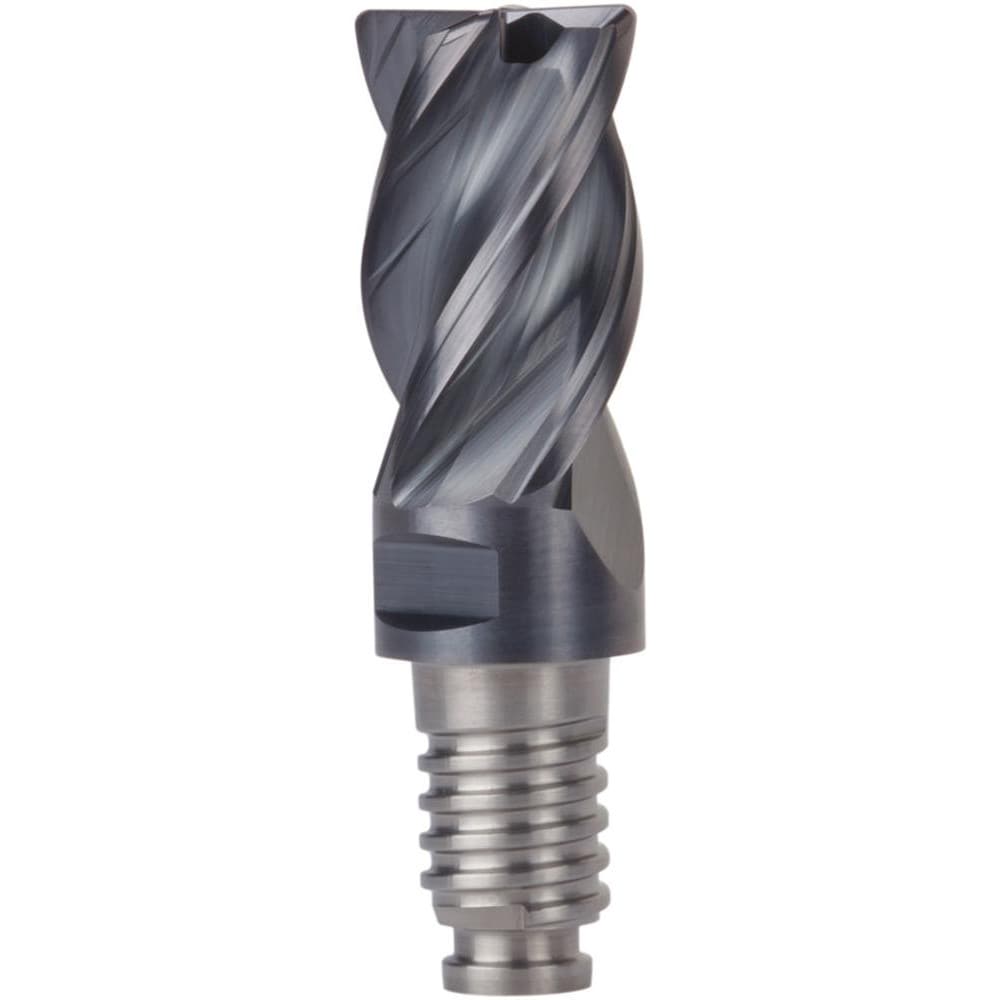

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 19.05; Mill Diameter (Inch): 3/4; Chamfer Width (mm): 0.510; Chamfer Angle: 45.000; Length of Cut (Inch): 1-1/8; Length of Cut (mm): 28.5800; Number Of Flutes: 4
Item #: 84770411
Brand: Kennametal
Model #: 7136463
Product Specifications
| Mill Diameter (mm) | 19.05 |
| Mill Diameter (Inch) | 3/4 |
| Chamfer Width (mm) | 0.510 |
| Chamfer Angle | 45.000 |
| Length of Cut (Inch) | 1-1/8 |
| Length of Cut (mm) | 28.5800 |
| Number Of Flutes | 4 |
| Overall Length (mm) | 66.8000 |
| End Mill Material | Solid Carbide |
| Overall Length (Decimal Inch) | 2.6299 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Centercutting | Yes |
| Connection Type | Duo-Lock 20 |
| Flute Type | Variable; Helical |
| Maximum Helix Angle | 39 |
| Material Grade | KCPM15 |
| Series | Duo-Lock Harvi I TE |
| Helix Angle | 36 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1250 |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
