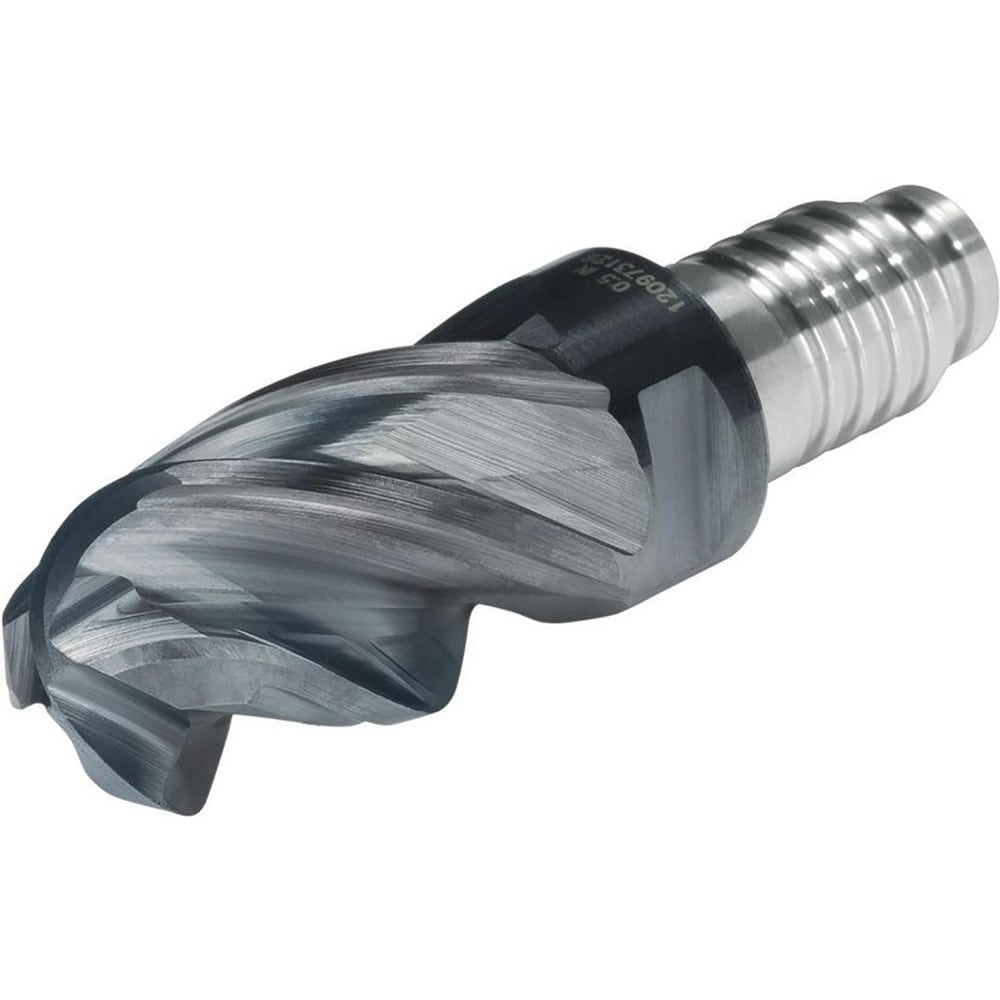

Ball End Mill Heads; Mill Diameter (mm): 20.00; Mill Diameter (Decimal Inch): 0.7874; Length of Cut (mm): 30.0000; Length Of Cut (Decimal Inch - 4 Decimals): 1.1811; Connection Type: Duo-Lock 20; Overall Length (Decimal Inch): 2.7126
Item #: 84773019
Brand: Kennametal
Model #: 7136731
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Length of Cut (mm) | 30.0000 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1811 |
| Connection Type | Duo-Lock 20 |
| Overall Length (Decimal Inch) | 2.7126 |
| Overall Length (mm) | 68.9000 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Variable; Helical Flute |
| Helix Angle | 36 |
| Helix Style | Variable |
| Material Grade | Carbide |
| Maximum Helix Angle | 50 |
| Nose Radius (Decimal Inch) | 0.3937 |
| Series/List | Duo-Lock Harvi I TE |
| Undercutting | No |
| Number Of Flutes | 4 |
| Finish Coating | AlTiN |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
