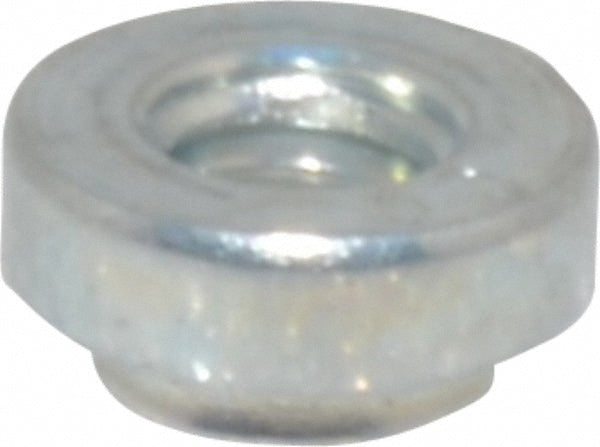

#8-32, 0.056" Min Panel Thickness, Round Head, Clinch Captive Nut
Item #: 89059869
Brand: Value Collection
Model #: IES832-2
Product Specifications
| Nut Type | Clinch |
| Head Shape | Round |
| Material | Steel |
| Minimum Panel Thickness (Decimal Inch) | 0.0560 |
| Head Diameter (Decimal Inch) | 0.3100 |
| Thread Size | #8-32 |
| Head Height (Decimal Inch) | 0.0900 |
| Body Diameter (Decimal Inch) | 0.2120 |
| Mounting Hole Diameter (Decimal Inch) | 0.2130 |
| UNSPSC Code | 31161706 |
| Country of Origin | China |
