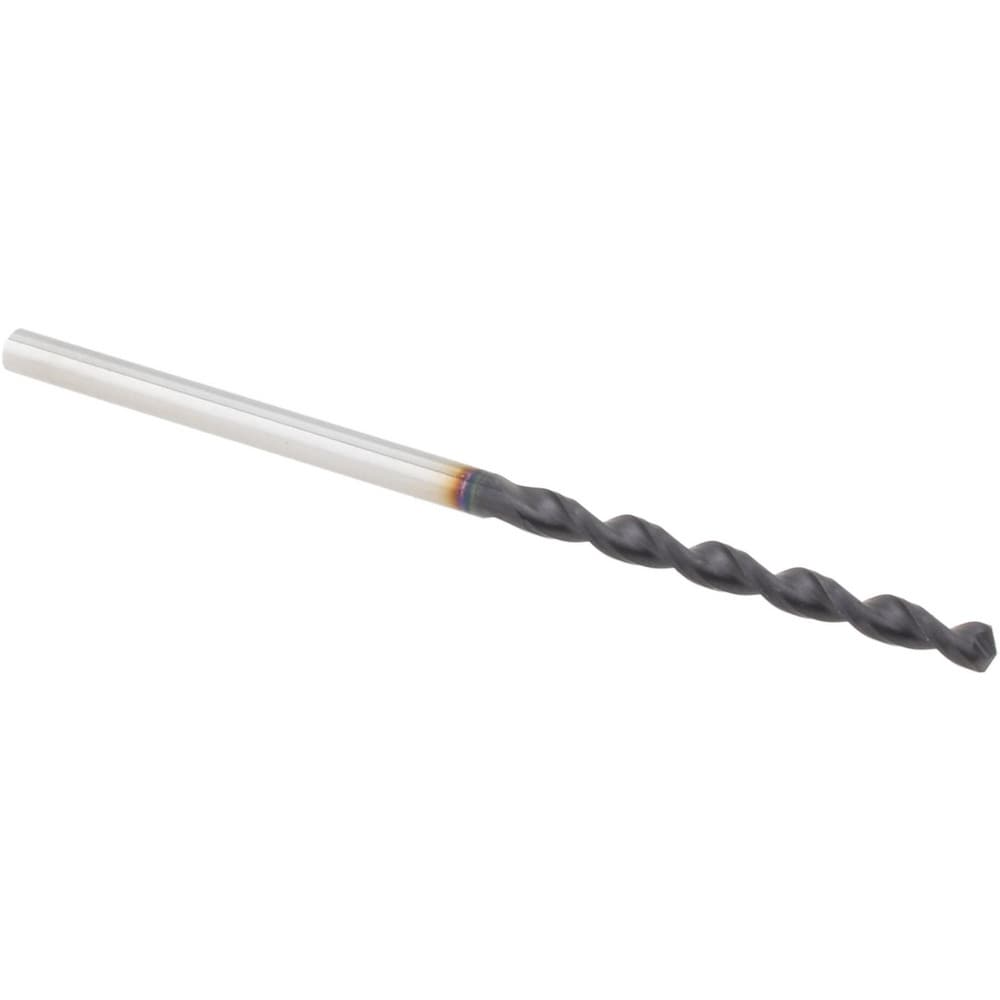

Jobber Length Drill Bit: ( 0.0890") Dia, 130 deg Point, Powdered Metal
Item #: 40963647
Brand: Guhring
Model #: 9005300022600
Product Specifications
| Drill Bit Size (Wire) | #43 |
| Drill Bit Size (Decimal Inch) | 0.0890 |
| Drill Bit Material | Powdered Metal |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Multi-layer |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Cone Relief |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Coolant Through | No |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | P; K |
| Overall Length (mm) | 53.00 |
| Overall Length (Decimal Inch) | 2.0900 |
| Spiral Type | Fast |
| Flute Length (mm) | 27.00 |
| Flute Length (Decimal Inch) | 1.0600 |
| Proprietary Coating/Finish | FIREX |
| Series | 530 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 2.26 |
| Maximum Drilling Depth (Decimal Inch) | 0.9300 |
| Maximum Drilling Depth (mm) | 23.61 |
| Shank Length (mm) | 26 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Standards | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
