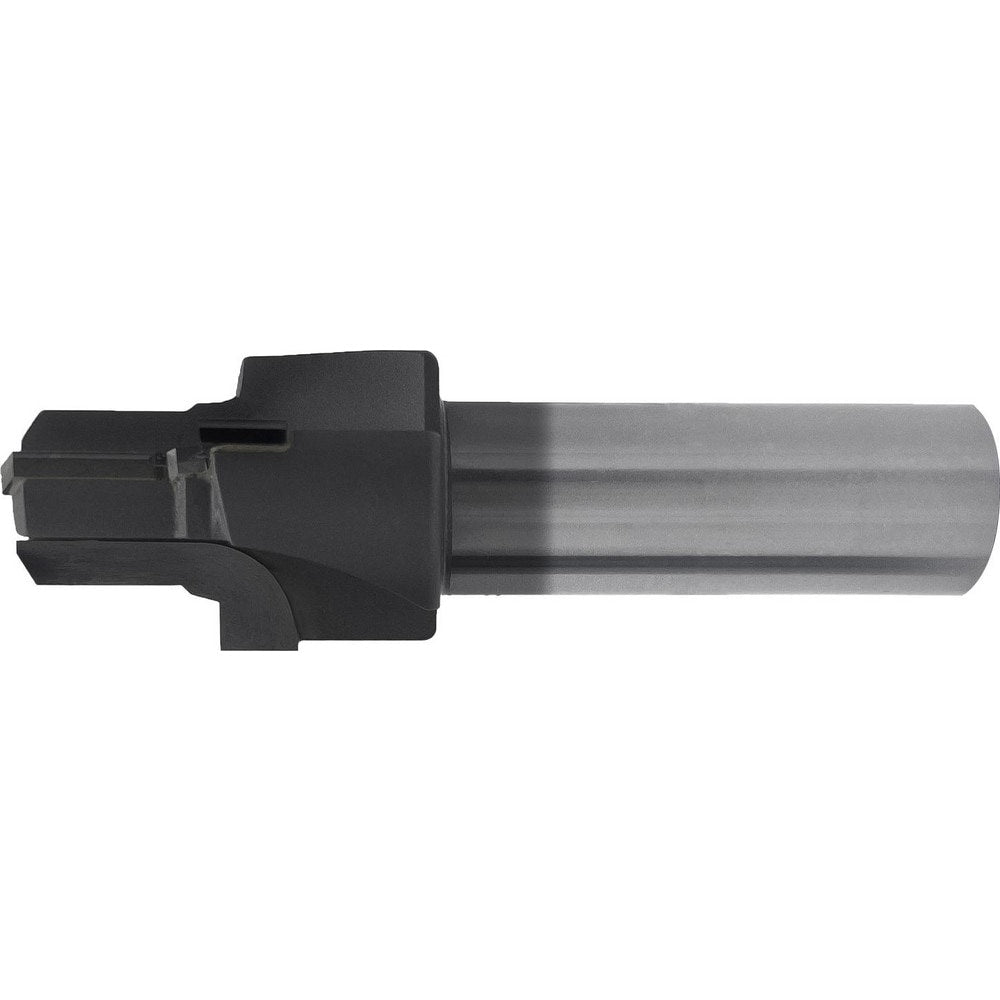

Brand: Scientific Cutting Tools / Part #: SAEJ1926-08RX3A
Item #: 99231904
Brand: Scientific Cutting Tools
Model #: SAEJ1926-08RX3A
Product Specifications
| Spotface Diameter (Decimal Inch) | 1.1980 |
| Tube Outside Diameter Compatibility (Inch) | 1/2 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 3/4-16 |
| Tool Material | Carbide-Tipped |
| Tube Dash Number | 8.000 |
| Minimum Pilot Diameter (Decimal Inch) | 0.6880 |
| Pilot Length | 0.5910 |
| Overall Length (Decimal Inch) | 3.7000 |
| Number Of Flutes | 3 |
| Standards | SAEJ1926; MS16142 |
| Shank Type | Straight |
| Identification Groove | No |
| Series | Coolant Through |
| Seal Angle | 15 |
| Thread Type | UNF |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 3/4 |
| Shank Length (Decimal Inch) | 2.1200 |
| Maximum Pilot Diameter (Decimal Inch) | 0.8135 |
| Head Length (Decimal Inch) | 1.5800 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN |
