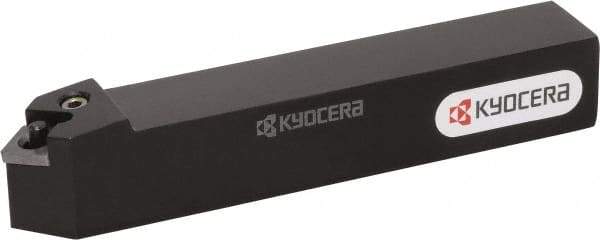

Kyocera - PSDN, Neutral Cut, 90° Lead Angle, 16mm Shank Height x 16mm Shank Width, Negative Rake Indexable Turning Toolholder - 100mm OAL, SN.. 33 Insert Compatibility, Series PSDN
Item #: 50480664
Brand: Kyocera
Model #: 8806548
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | PSDN |
| Rake | Negative |
| Rake Angle | -8.50 |
| Series | PSDN |
| Lead Angle | 90 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | SN.. 33 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Chamfering; External Turning |
| Insert Holding Method | Lock Pin |
| Back of Bar to Cutting Edge (mm) | 13.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5118 |
| Head Length (mm) | 21.00 |
| Head Length (Decimal Inch) | 0.8268 |
