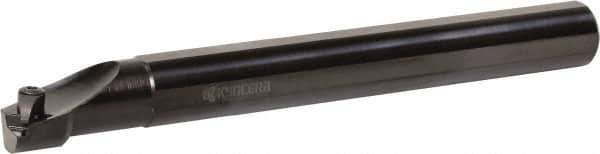

Kyocera - 1.06" Min Bore Diam, 7" OAL, 3/4" Shank Diam, S...CTUP Indexable Boring Bar - 1-1/2" Max Bore Depth, TPG 22.., TPGR 22.., TPM 22.., TPMR 22.. Insert, Clamp Holding Method
Item #: 50479500
Brand: Kyocera
Model #: 8604116
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S...CTUP |
| Minimum Bore Diameter (Decimal Inch) | 1.0600 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 7.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | TPG 22..; TPGR 22..; TPM 22..; TPMR 22.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Clamp |
| Rake | Neutral |
| Lead Angle | 3 |
| Center to Cutting Edge (Decimal Inch) | 0.5200 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TPG 2202SE; TPG 2205; TPG 2205NE; TPG 2205SE; TPG 2205T00315ME; TPG 2205T00315SE; TPG 2205T00320AA; TPG 221; TPG 221NE; TPG 221S00435SET; TPG 221SE; TPG 221T00315; TPG 221T00315ME; TPG 221T00315SE; TPG 221T00320AA; TPG 222; TPG 222NE; TPG 222S00435SET; TP |
| Toolholder Material | Steel |
