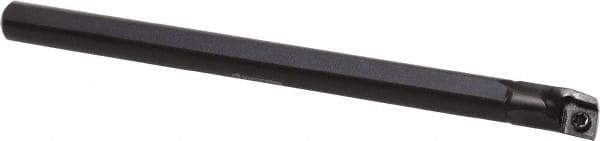

Kyocera - 0.788" Min Bore Diam, 7" OAL, 5/8" Shank Diam, S...SCLP(C) Indexable Boring Bar - 1.38" Max Bore Depth, CPGB 32.., CPMB 32.., CPMH 32.., CPMT 32.. Insert, Screw Holding Method
Item #: 50454164
Brand: Kyocera
Model #: 8604096
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S...SCLP(C) |
| Minimum Bore Diameter (Decimal Inch) | 0.7880 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.3800 |
| Overall Length (Decimal Inch) | 7.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | CPGB 32..; CPMB 32..; CPMH 32..; CPMT 32.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.3940 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -3 |
| Complete Insert Compatibility | CPGB 3205T00315ME; CPGB 3205T00315SE; CPGB 321S00435MET; CPGB 321S00435SET; CPGB 321S00525MES; CPGB 321T00315; CPGB 321T00315ME; CPGB 321T00315SE; CPGB 322S00435MET; CPGB 322T00315; CPMB 3205; CPMB 321; CPMB 322; CPMH 3202; CPMH 3202NE; CPMH 3205; CPMH 32 |
| Toolholder Material | Steel |
