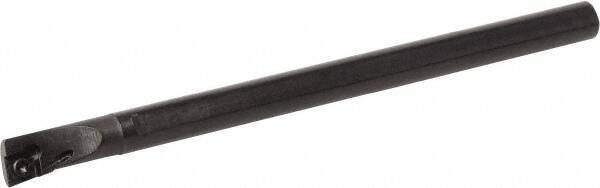

Kyocera - 0.42" Min Bore Diam, 5" OAL, 0.313" Shank Diam, A...SCLC Indexable Boring Bar - CCGT 215.., CCGW 215.., CCMT 215.., CCMW 215.. Insert, Screw Holding Method
Item #: 50454131
Brand: Kyocera
Model #: 8605512
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A...SCLC |
| Minimum Bore Diameter (Decimal Inch) | 0.4200 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 5.0000 |
| Shank Diameter (Decimal Inch) | 0.3130 |
| Insert Compatibility | CCGT 215..; CCGW 215..; CCMT 215..; CCMW 215.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.2180 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | -11 |
| Complete Insert Compatibility | CCGT 215013M; CCGT 215013MF; CCGT 215013MFR/L-U; CCGT 21501FR/L-U; CCGT 21502; CCGT 21502ER/L-U; CCGT 21502FR/L-U; CCGT 21502M; CCGT 21502MER/L-U; CCGT 21502MF; CCGT 21502MF-GF; CCGT 21502MFP-GF; CCGT 21502MFP-GQ; CCGT 21502MFR/L-U; CCGT 21505; CCGT 21505 |
| Toolholder Material | Steel |
