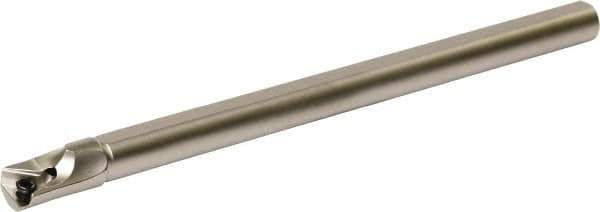

Kyocera - 1.28" Min Bore Diam, 12" OAL, 1" Shank Diam, A/S-STLB(P)-AE Indexable Boring Bar - 1.811" Max Bore Depth, TPGB 32.., TPGH 32.., TPMH 32.., TPMT 32.. Insert, Screw Holding Method
Item #: 50397223
Brand: Kyocera
Model #: 8826467
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A/S-STLB(P)-AE |
| Series | Dynamic Bars |
| Minimum Bore Diameter (Decimal Inch) | 1.2800 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.8110 |
| Overall Length (Inch) | 12 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | TPGB 32..; TPGH 32..; TPMH 32..; TPMT 32.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 5 |
| Center to Cutting Edge (Decimal Inch) | 0.5390 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 5.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1969 |
| Complete Insert Compatibility | TPGB 3202SE; TPGB 3205NE; TPGB 3205SE; TPGB 3205T00315; TPGB 3205T00315SE; TPGB 321; TPGB 321NE; TPGB 321S00435MET; TPGB 321S00435SET; TPGB 321SE; TPGB 321T00315; TPGB 321T00315ME; TPGB 321T00315SE; TPGB 322; TPGB 322NE; TPGB 322S00435MET; TPGB 322S00435S |
| Toolholder Material | Steel |
