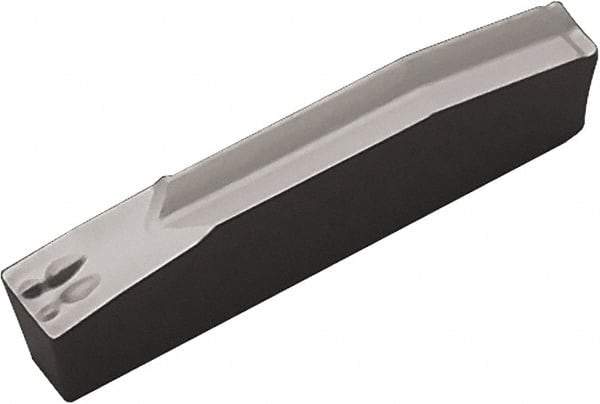

Kyocera - 3GMN Grade KBN510, 3mm Cutting Width CBN Grooving Insert - Neutral, 0.2mm Corner Radius, Uncoated
Item #: 50366350
Brand: Kyocera
Model #: 8820820
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | GMN |
| Insert Size | 3 |
| Material | CBN |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | KBN510 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GMN |
| Manufacturers Catalog Number | GMN3 |
| Insert Thickness (Decimal Inch) | 0.0906 |
| Insert Thickness (mm) | 2.3000 |
