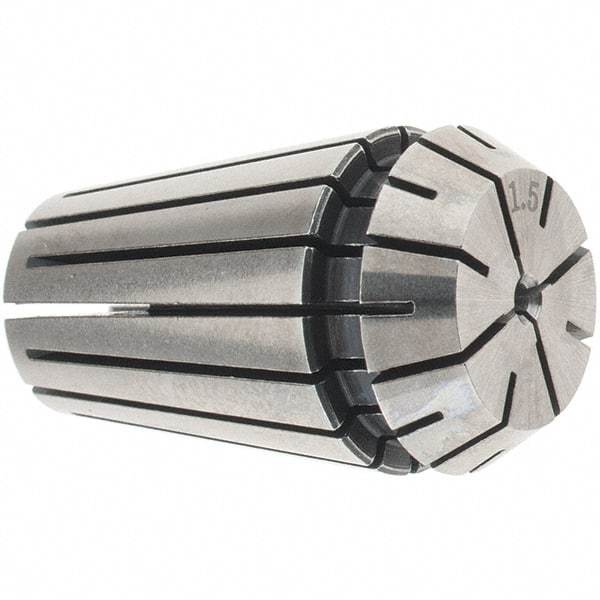

Accupro - 1 to 1.5mm ER16 Collet - 0.01mm TIR, 27mm OAL, 17mm Overall Diam
Item #: 50336593
Brand: Accupro
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER16 |
| Size Range (mm) | 1.50 |
| TIR (mm) | 0.0100 |
| Minimum Collet Capacity (mm) | 1.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.0393 |
| Maximum Collet Capacity (mm) | 1.50 |
| Maximum Collet Capacity (Decimal Inch) | 0.0590 |
| Overall Length (mm) | 27.00 |
| Overall Diameter (mm) | 17.00 |
| Number of Pieces | 1 |
| PSC Code | 5136 |
