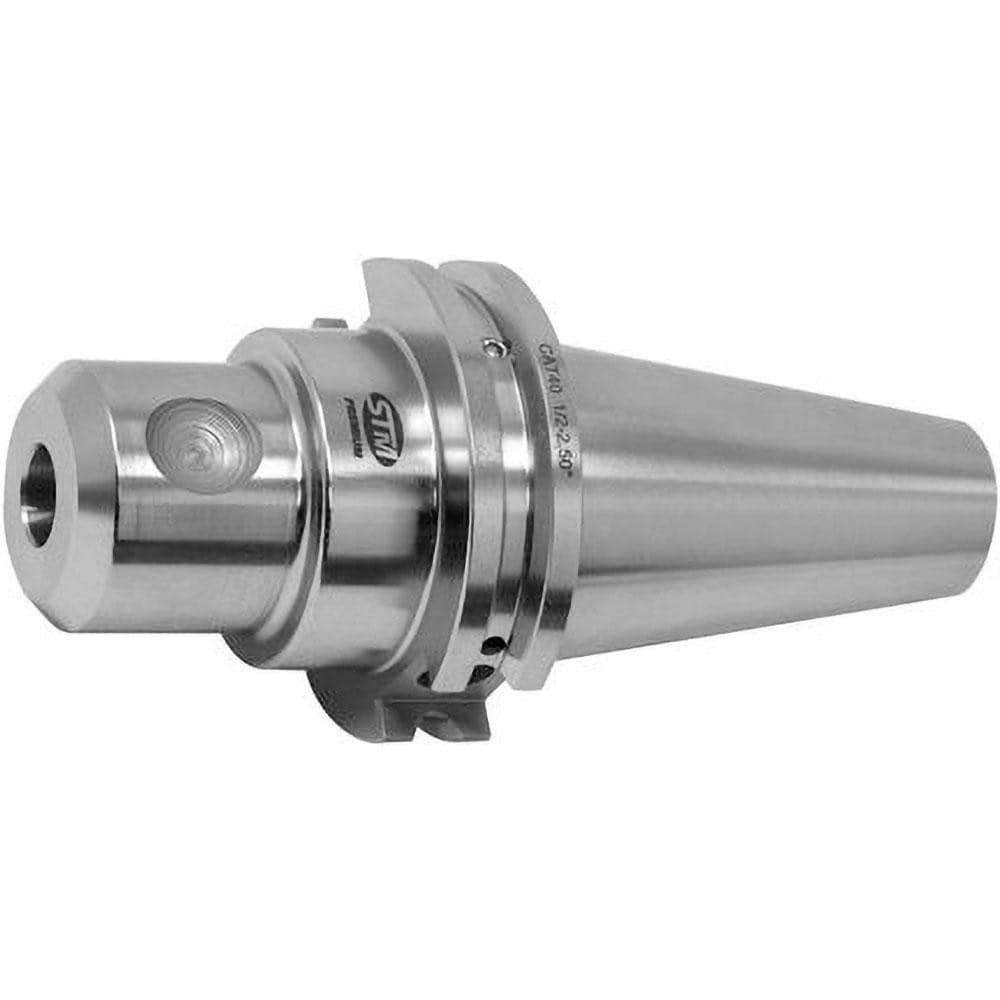

Brand: STM Premium / Part #: 525042
Item #: 62404546
Brand: STM Premium
Model #: 525042
Product Specifications
| Shank Type | Taper |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Overall Length (Decimal Inch) | 5.6870 |
| Taper Size | CAT 40 |
| Hole Diameter (Inch) | 3/4 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.7500 |
| Projection (Inch) | 3 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 1.7700 |
| Maximum RPM | 8000.000 |
| TIR (Decimal Inch) | 0.000200 |
| Coolant Type | Through-Spindle |
| No Description | 3" |
| Flange Diameter (Decimal Inch) | 2.5 |
| Additional Information | Set screw: 5/8-18 |
