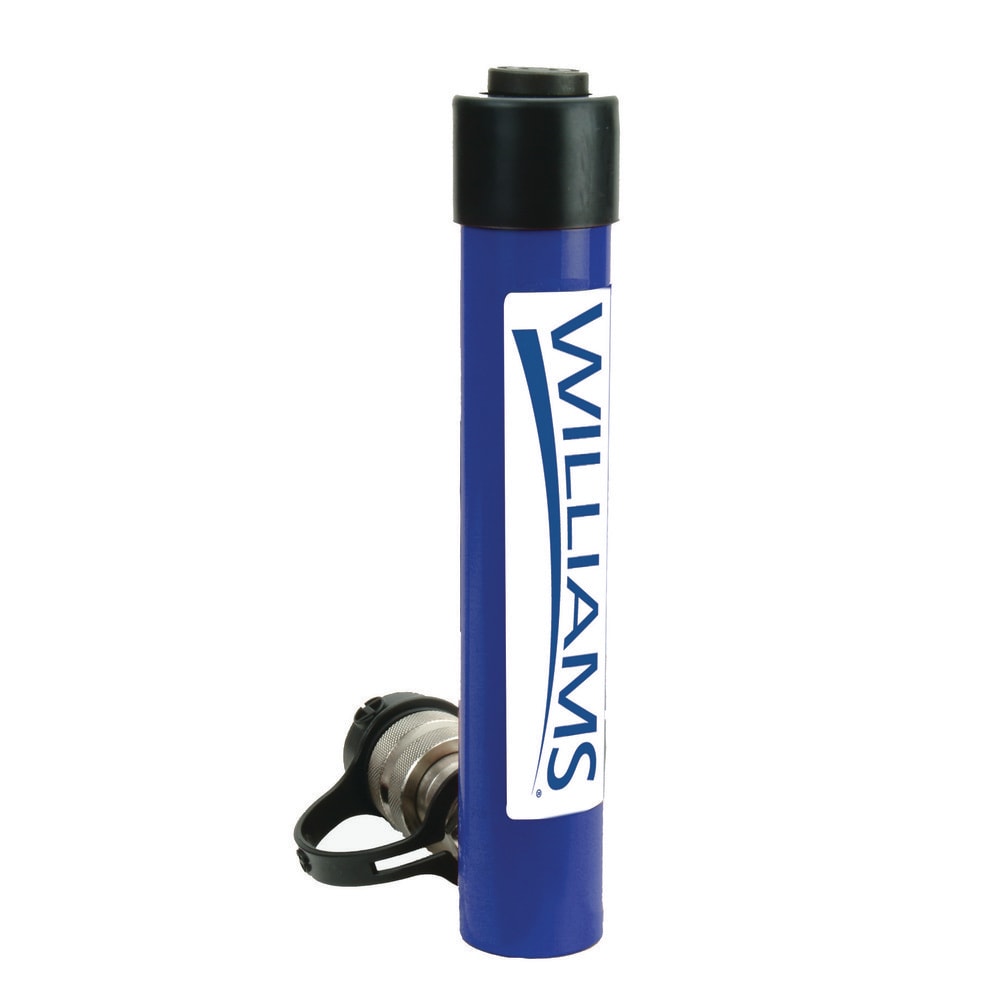

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 5 TON; Stroke Length: 3.07; Piston Stroke (Decimal Inch): 3.07; Oil Capacity: 3.07; Cylinder Effective Area: 1.00; Lowered Height: 6.65
Item #: 42938522
Brand: Williams
Model #: 6C05T03
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 5 TON |
| Stroke Length | 3.07 |
| Piston Stroke (Decimal Inch) | 3.07 |
| Oil Capacity | 3.07 |
| Cylinder Effective Area | 1.00 |
| Lowered Height | 6.65 |
| Retracted Length | 6.65 |
| Extended Length | 9.72 mm |
| Cushion Type | No Cushion |
| Outside Diameter | 1.50 |
| Rod Diameter | 1.00 |
| Plunger Type | Solid |
| Telescopic | Yes |
| Maximum Working Pressure | 10000 psi |
| Body Material | Steel |
| Saddle Diameter | .98 |
| Y Center Hole Diameter | 1.00 |
| Maximum Height (Inch) | 9.72 |
| For Use With | Lifting |
| UNSPSC Code | 27121602 |
