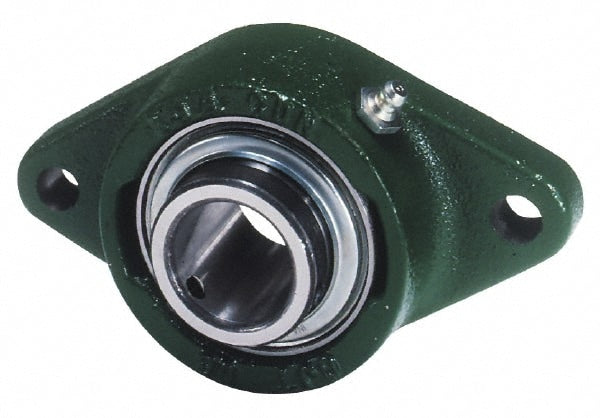

20mm ID, 4.409" OAL x 1.673" OAH 2-Bolt Lok Col Econseal Met
Item #: 57132243
Brand: INA Bearing
Model #: PCJT20
Product Specifications
| Type | 2Bolt Lokcol Econseal Met |
| Flange Mount Type | 2-Bolt Flange |
| Inside Diameter (mm) | 20.0000 |
| Inside Diameter (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 4.4090 |
| Overall Height (Decimal Inch) | 1.6730 |
| Static Load Capacity | 2550.0 |
| Dynamic Load Capacity (Lb.) | 2900 |
| Distance Between Base And Center (mm) | 62.0000 |
| Distance Between Base And Center (Decimal Inch) | 2.4410 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 0.500 |
| Flange Thickness (Decimal Inch) | 0.4330 |
| Type | 2Bolt Lokcol Econseal Met |
| Flange Mount Type | 2-Bolt Flange |
| Inside Diameter (mm) | 20.0000 |
| Inside Diameter (Decimal Inch) | 0.7870 |
| Overall Length (Decimal Inch) | 4.4090 |
| Overall Height (Decimal Inch) | 1.6730 |
| Static Load Capacity | 2550.0 |
| Dynamic Load Capacity (Lb.) | 2900 |
| Distance Between Base And Center (mm) | 62.0000 |
| Distance Between Base And Center (Decimal Inch) | 2.4410 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 0.500 |
| Flange Thickness (Decimal Inch) | 0.4330 |
| MSC Part # | 57132243 |
| Mfr Part # | PCJT20 |
| Country of Origin Country of Origin is subject to change | Vietnam |
