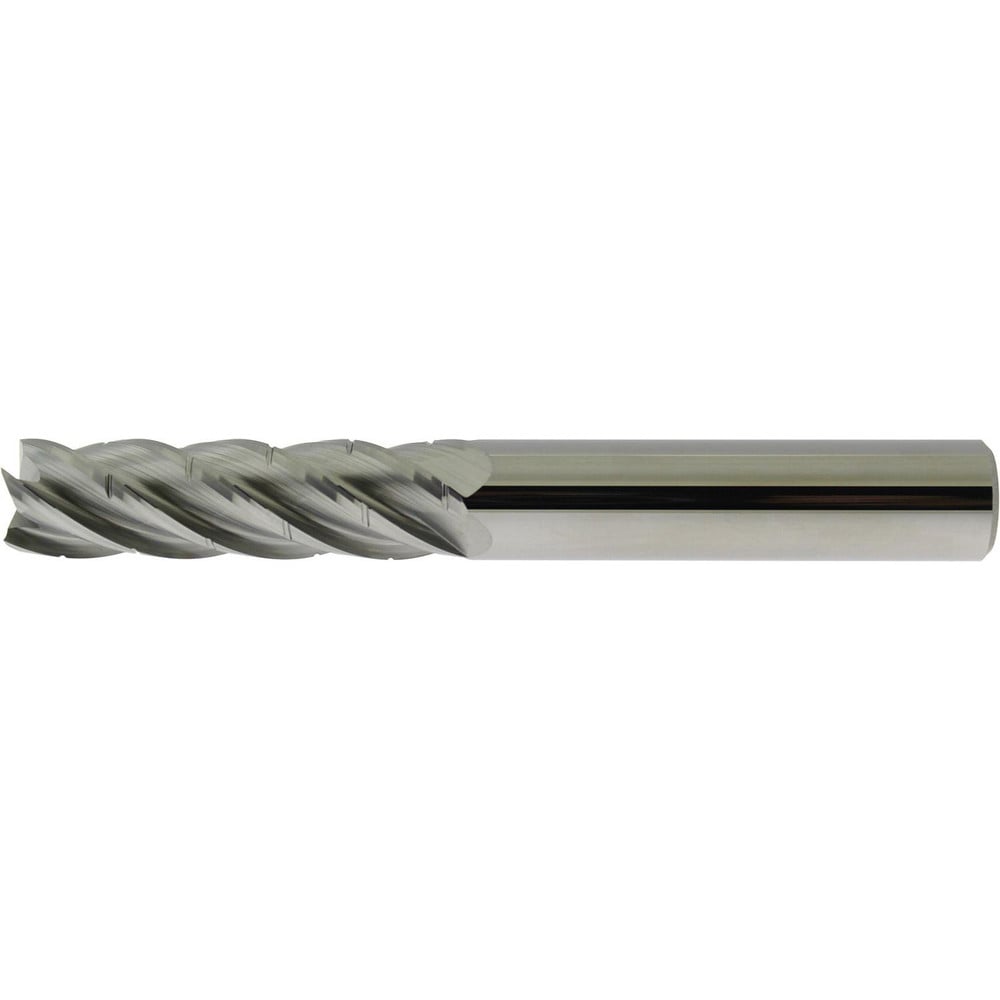

Brand: Accupro / Part #: 14735166
Item #: 13486758
Brand: Accupro
Model #: 14735166
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 1-7/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 4 |
| Helix Angle | 36 |
| Chipbreaker | Yes |
| Variable Helix | No |
| Variable Index | Yes |
| Material Application | Aluminum |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 1.8750 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Through Coolant | Yes |
| Series | AL-5 |
