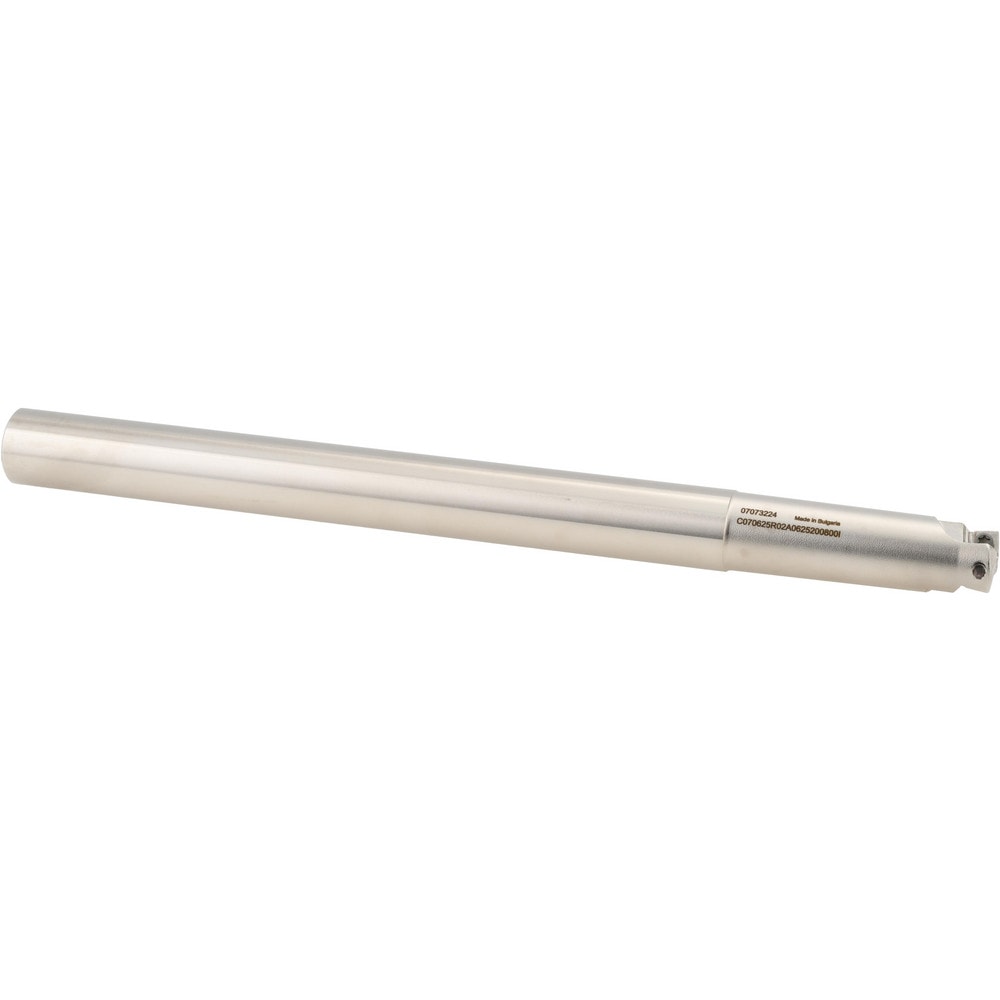

Indexable High-Feed End Mills; Minimum Cutting Diameter (Inch): 5/8; Maximum Cutting Diameter (Inch): 1.2200
Item #: 07073224
Brand: Accupro
Model #: 07073224
Product Specifications
| Minimum Cutting Diameter (Inch) | 5/8 |
| Maximum Cutting Diameter (Inch) | 1.2200 |
| Maximum Depth of Cut (Decimal Inch) | 0.0315 |
| Toolholder Style | C-SSM |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.625 |
| Shank Diameter (Inch) | 5/8 |
| Maximum Ramping Angle | 4.5 |
| Compatible Insert Style | XPLT |
| Compatible Insert Size Code | 7 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 8.0000 |
| Series | CI |
| Tool Application | Milling |
| End Mill Type | High Feed |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
