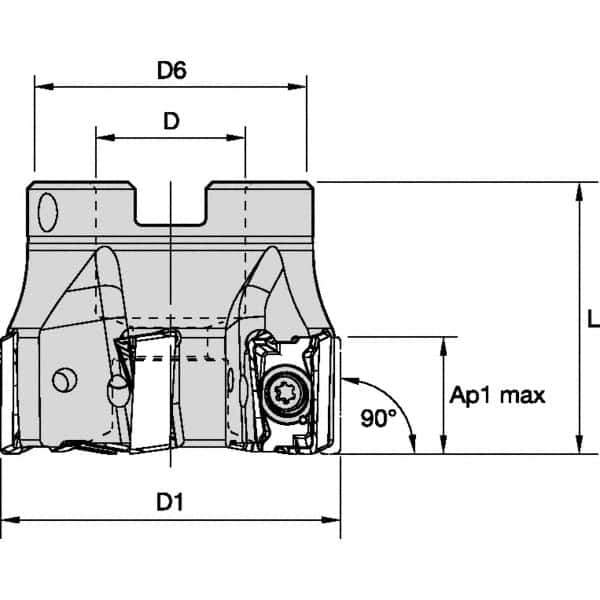

Kennametal - 12 Inserts, 5" Cut Diam, 1-1/2" Arbor Diam, 15.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 60.45mm High, LNGU15T608SRGE Insert Compatibility, Through Coolant, Series MILL 4-15
Item #: 49963317
Brand: Kennametal
Model #: 5613027
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 127.00 |
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0 |
| Overall Height (mm) | 60.45 |
| Overall Height (Decimal Inch) | 2.3800 |
| Insert Compatibility | LNGU15T608SRGE |
| Series | MILL 4-15 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 12 |
| Hub Diameter (mm) | 99.25 |
| Hub Diameter (Decimal Inch) | 3.9070 |
| Maximum Body Diameter (Decimal Inch) | 4.8760 |
| Maximum RPM | 9660 |
| Toolholder Material | Steel |
