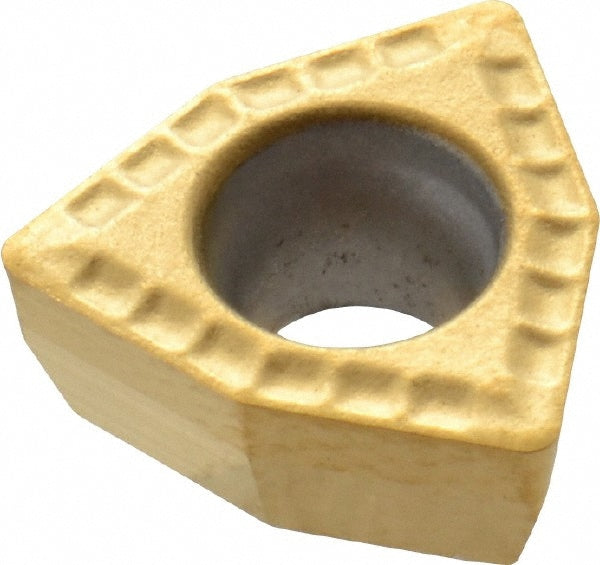

Indexable Drill Insert: DFTMD KC720
Item #: 01120385
Brand: Kennametal
Model #: 1157969
Product Specifications
| Insert Style | DFT |
| Insert Material | Carbide |
| Manufacturer Grade | KC720 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Inscribed Circle (mm) | 6.00 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.4 |
| Chipbreaker | MD |
| Coating Process | PVD |
| Shape | Trigon |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.65 |
| Relief Angle | 8 |
| Insert Size | 030304 |
| Length (Mm) | 3.97 |
| Length (Decimal Inch - 4 Decimals) | 0.1563 |
| Included Angle Degree | 84 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1161 |
| Coating/Finish | TiN |
| UNSPSC Code | 23242105 |
| Insert Style | DFT |
| Insert Material | Carbide |
| Manufacturer Grade | KC720 |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Inscribed Circle (mm) | 6.00 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.4 |
| Chipbreaker | MD |
| Coating Process | PVD |
| Shape | Trigon |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.65 |
| Relief Angle | 8 |
| Insert Size | 030304 |
| Length (Mm) | 3.97 |
| Length (Decimal Inch - 4 Decimals) | 0.1563 |
| Included Angle Degree | 84 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1161 |
| Coating/Finish | TiN |
| UNSPSC Code | 23242105 |
| MSC Part # | 01120385 |
| Mfr Part # | 1157969 |
| Big Book Page # | 174 |
