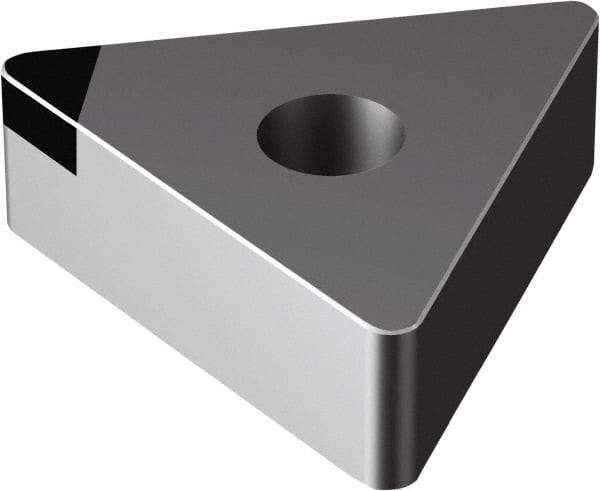

Sandvik Coromant - TNMA433 Grade CB20 CBN Turning Insert - 60° Triangle, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 49683436
Brand: Sandvik Coromant
Model #: 5753524
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | TNMA |
| Insert Size | 433 |
| Material | CBN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | CB20 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | TNMA220412S01020E CB20 |
| Relief Angle | 0 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 2.90 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Chamfered andRounded |
| Shape | Triangle |
