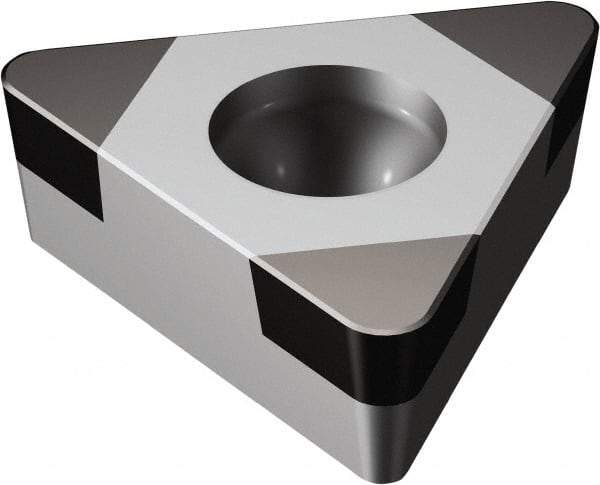

Sandvik Coromant - TCGW21.52 Grade 7025 CBN Turning Insert - 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 49672959
Brand: Sandvik Coromant
Model #: 5772709
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | TCGW |
| Insert Size | 21.52 |
| Material | CBN |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 7025 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | TCGW110208S01530F 7025 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered andRounded |
| Shape | Triangle |
