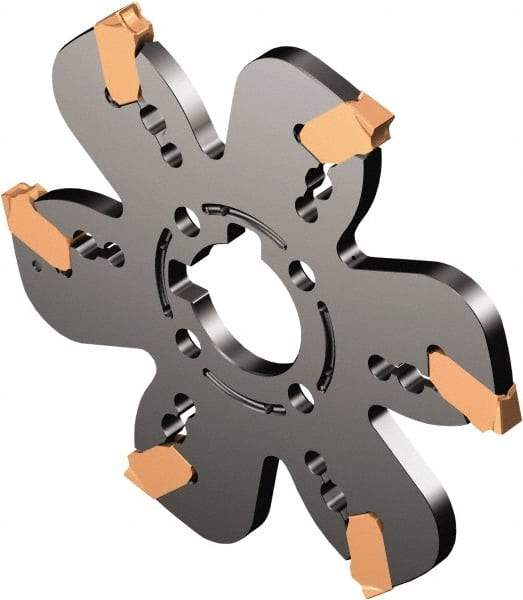

Sandvik Coromant - 0.0941" Cutting Width, 0.8701" Depth of Cut, 76.2mm Cutter Diam, 0.3937" Hole Diam, Indexable Slotting Cutter - 0.3937" Shank Diam, AQD..Y..C Toolholder, Right Hand Cutting Direction
Item #: 49665201
Brand: Sandvik Coromant
Model #: 6657553
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Cutting Width (mm) | 2.39 |
| Maximum Depth of Cut (mm) | 22.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.8701 |
| Maximum Depth of Cut (Decimal Inch) | 0.8701 |
| Maximum Depth of Cut (mm) | 22.1 |
| Cutter Diameter (mm) | 76.20 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Hole Diameter (mm) | 10.00 |
| Hole Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Inch) | 0.393701 |
| Modular Connection Size | X10 |
| Toolholder Style | AQD..Y..C |
| Series | CoroMill QD |
| Number of Cutter Inserts | 5 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Maximum RPM | 5100 |
| Maximum RPM | 5100 |
| Through Coolant | Yes |
| Complete Insert Compatibility1 | QD-NF-0239-020E-PM |
| Overall Height (mm) | 2.19 |
| Overall Height (Decimal Inch) | 0.0864 |
