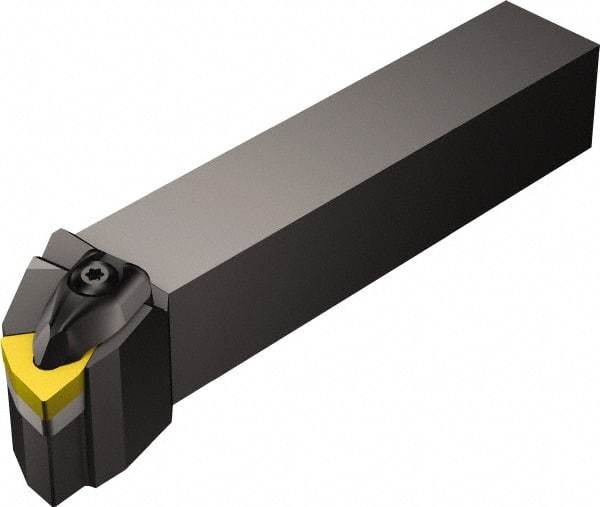

Sandvik Coromant - DWLNR/L, Left Hand Cut, -5° Lead Angle, 20mm Shank Height x 20mm Shank Width, Negative Rake Indexable Turning Toolholder - 125mm OAL, WNMG 08 04 08, WNMG 432 Insert Compatibility, Series T-Max P
Item #: 49650351
Brand: Sandvik Coromant
Model #: 5732351
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DWLNR/L |
| Rake | Negative |
| Series | T-Max P |
| Lead Angle | -5 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | WNMG 08 04 08; WNMG 432 |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 125.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.9213 |
| Center to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 34.30 |
| Head Length (Decimal Inch) | 1.3504 |
| Toolholder Material | Steel |
