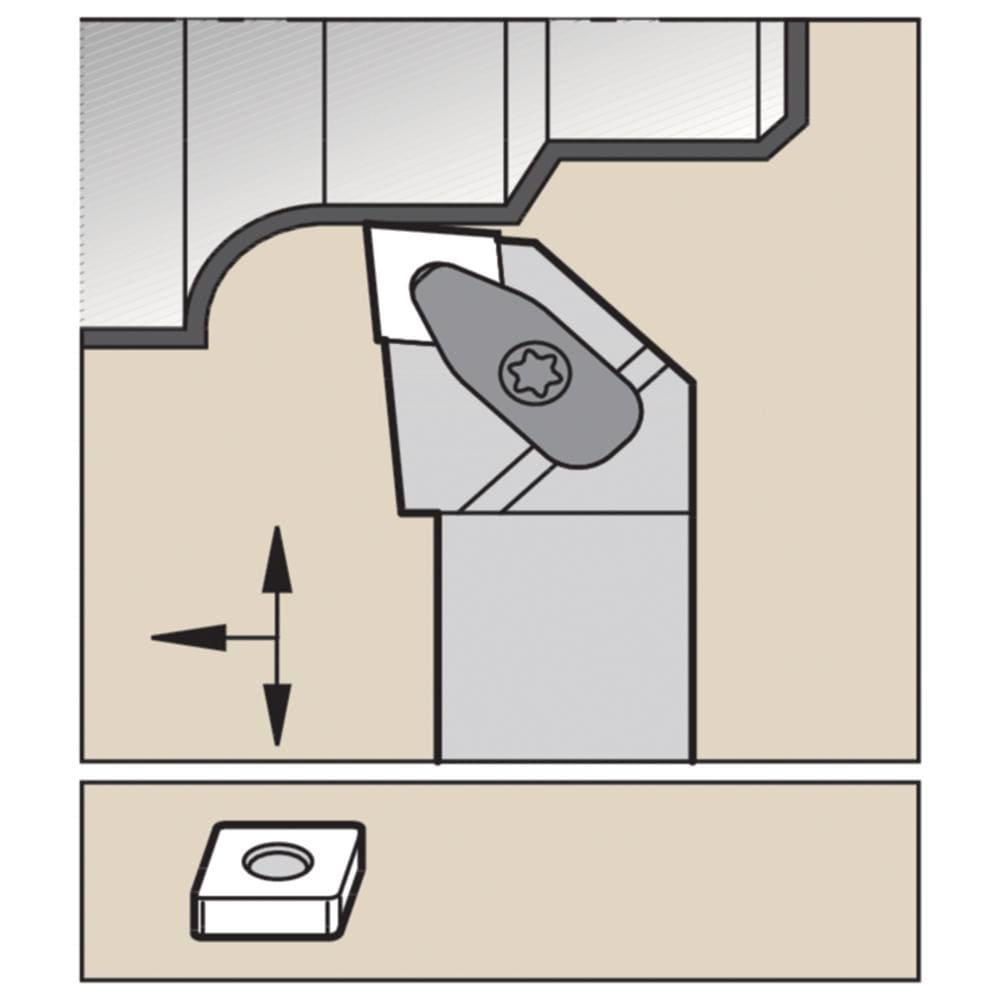

Brand: Widia / Part #: 5564316
Item #: 99303026
Brand: Widia
Model #: 5564316
Product Specifications
| Cutting Direction | Left Hand |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 54. |
| Toolholder Style | DCLNL |
| Rake | Negative |
| Rake Angle | -5 (Axial);-5 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 95.000 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 1.5000 |
| Shank Width (Inch) | 1-1/2 |
| Insert Compatibility | CN..54. |
| Shank Height (Decimal Inch) | 1.5000 |
| Shank Height (Inch) | 1-1/2 |
| Series | DCLN |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Facing; Turning |
| Head Length (Decimal Inch) | 1.3770 |
| Back of Bar to Cutting Edge (Inch) | 2 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.0000 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Width (Inch) | 5/8 |
| Insert Width (Decimal Inch) | 0.6250 |
| Toolholder Material | Steel |
| ISO Number | DCLNL245DKC4 |
| Complete Insert Compatibility | CN.. |
| Coolant Through | No |
| Insert Thickness (Decimal Inch) | 0.2500 |
