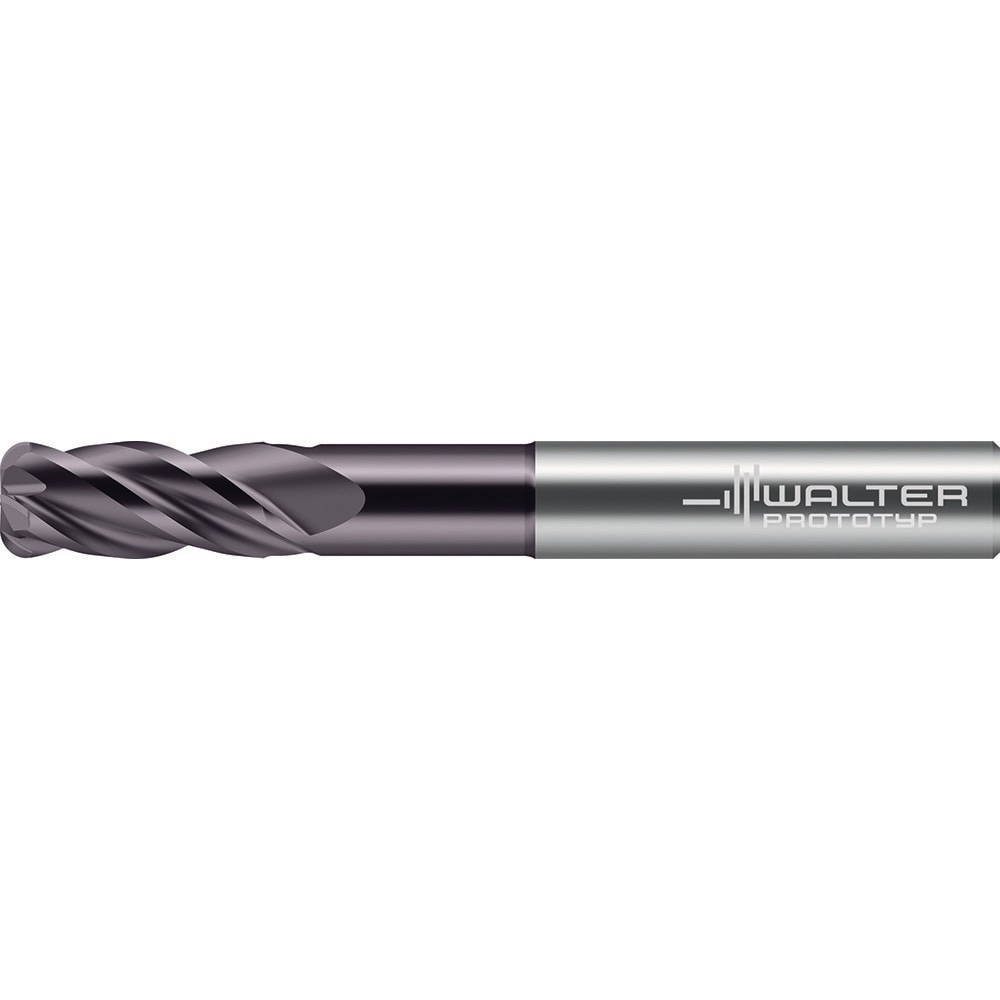

Square End Mill: 12.00 mm Dia, 53.0000 mm LOC, 4 Flute, Solid Carbide
Item #: 55376917
Brand: Walter-Prototyp
Model #: 8302924
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 53.0000 |
| Shank Diameter (mm) | 12.0000 |
| Overall Length (mm) | 100.0000 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 38 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; K; M; N |
| Coating/Finish | TiAlN/THL |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Whistle Notch |
| Material Grade | Solid Carbide |
| Length Type | Standard |
| Neck Diameter (mm) | 11.400 |
| Reach Length (mm) | 53.00 |
| Shank Diameter Tolerance | h5 |
| Series | MC230 |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 53.0000 |
| Shank Diameter (mm) | 12.0000 |
| Overall Length (mm) | 100.0000 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 38 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; K; M; N |
| Coating/Finish | TiAlN/THL |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Whistle Notch |
| Material Grade | Solid Carbide |
| Length Type | Standard |
| Neck Diameter (mm) | 11.400 |
| Reach Length (mm) | 53.00 |
| Shank Diameter Tolerance | h5 |
| Series | MC230 |
| UNSPSC Code | 27112803 |
| MSC Part # | 55376917 |
| Mfr Part # | 8302924 |
| Country of Origin Country of Origin is subject to change | China |
