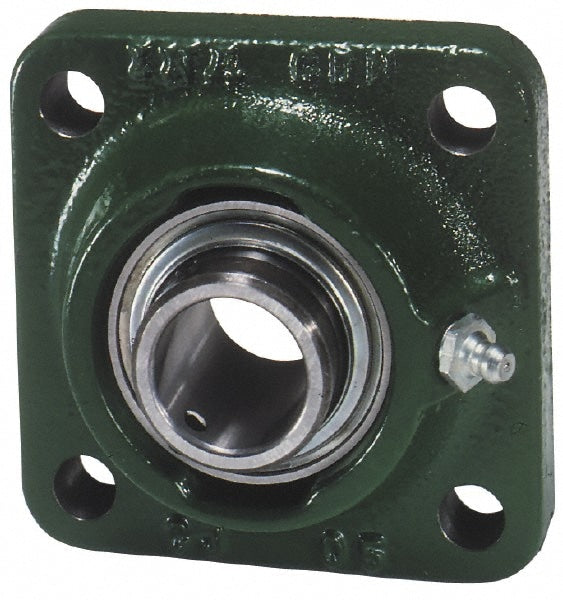

20mm ID, 3.3858" OAL x 1.4567" OAH 4-Bolt Set Screw Econ Seal Met
Item #: 57131658
Brand: INA Bearing
Model #: PCJY20
Product Specifications
| Type | 4Bolt Set Scrw Econ Seal Met |
| Inside Diameter (mm) | 20.0000 |
| Inside Diameter (Decimal Inch) | 0.7874 |
| Overall Length (Decimal Inch) | 3.3858 |
| Overall Height (Decimal Inch) | 1.4567 |
| Static Load Capacity | 2550.0 |
| Dynamic Load Capacity (Lb.) | 2900 |
| Distance Between Base And Center (mm) | 86.0000 |
| Distance Between Base And Center (Decimal Inch) | 3.3860 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 0.700 |
| Flange Thickness (Decimal Inch) | 0.4528 |
| Type | 4Bolt Set Scrw Econ Seal Met |
| Inside Diameter (mm) | 20.0000 |
| Inside Diameter (Decimal Inch) | 0.7874 |
| Overall Length (Decimal Inch) | 3.3858 |
| Overall Height (Decimal Inch) | 1.4567 |
| Static Load Capacity | 2550.0 |
| Dynamic Load Capacity (Lb.) | 2900 |
| Distance Between Base And Center (mm) | 86.0000 |
| Distance Between Base And Center (Decimal Inch) | 3.3860 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 0.700 |
| Flange Thickness (Decimal Inch) | 0.4528 |
| MSC Part # | 57131658 |
| Mfr Part # | PCJY20 |
| Country of Origin Country of Origin is subject to change | Vietnam |
