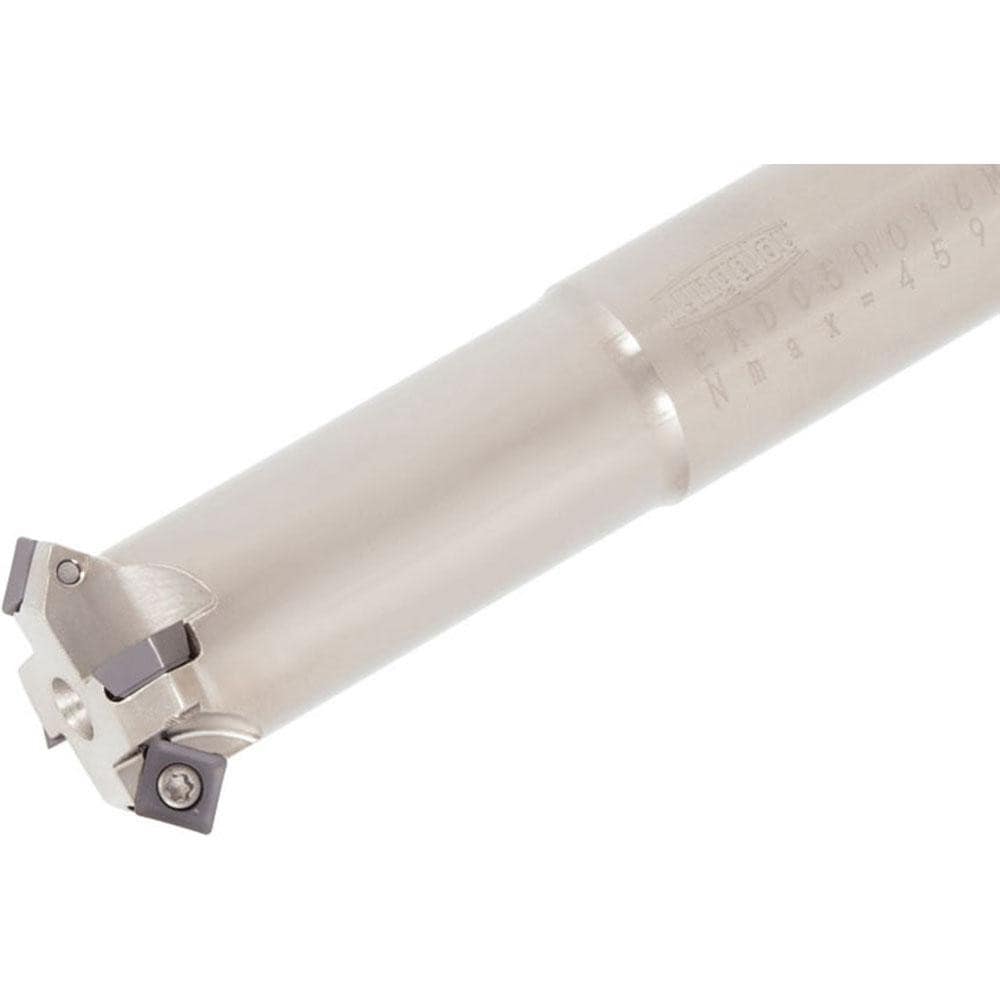

Indexable Chamfer & Angle End Mills; Minimum Cutting Diameter (mm): 5.70; Maximum Cutting Diameter (mm): 12.00
Item #: 16815763
Brand: Tungaloy
Model #: 6727161
Product Specifications
| Minimum Cutting Diameter (mm) | 5.70 |
| Maximum Cutting Diameter (mm) | 12.00 |
| Lead Angle | 45 |
| Maximum Depth of Cut (mm) | 3.00 |
| Compatible Insert Size Code | SDMT050204PN-MJ |
| Shank Diameter (mm) | 12.00 |
| Number Of Cutter Inserts | 1 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Overall Height (Mm - 5 Decimals) | 100.00 |
| Series | EASD05 |
| Toolholder Style | EAS |
| Functional Length (mm) | 100.00 |
| Maximum Body Diameter (mm) | 7.50 |
| Tool Application | Chamfering; Facing |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 1 |
| Coolant Through | No |
| Shank Type | Cylindrical |
