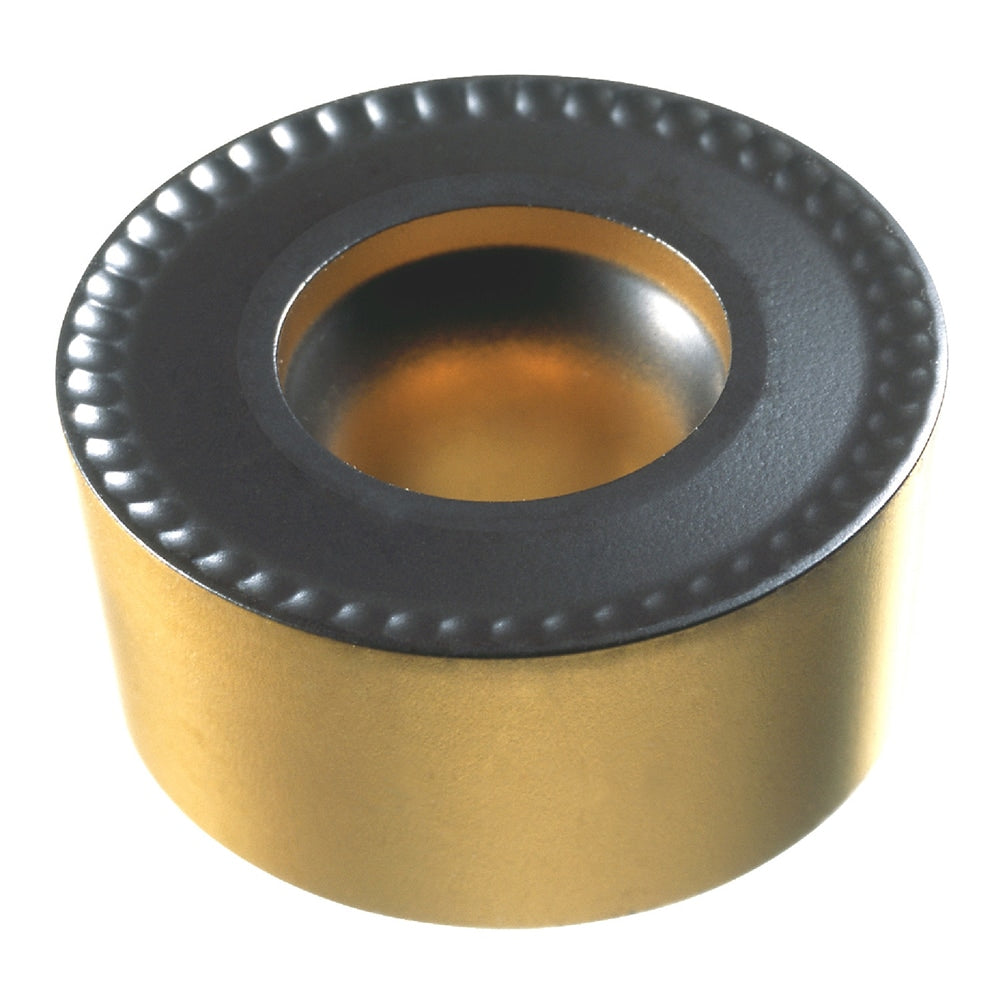

Turning Insert: RCMT 08 03 M0 4425, Carbide
Item #: 20458881
Brand: Sandvik Coromant
Model #: 8019475
Product Specifications
| ANSI Insert Code | RCMT0803M0 |
| ISO Insert Code | RCMT0803M0 |
| Insert Style | RCMT |
| Manufacturer Grade | 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Insert Hand | Neutral |
| Series | RCMT |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | R |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | K |
| Iso Code | RCMT 08 03 M0 4425 |
| Manufacturers Catalog Number | RCMT 08 03 M0 4425 |
| Chip Breaker | M0 |
| ANSI Size Code | 0803M0 |
| ISO Size Code | 0803M0 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 0803 |
