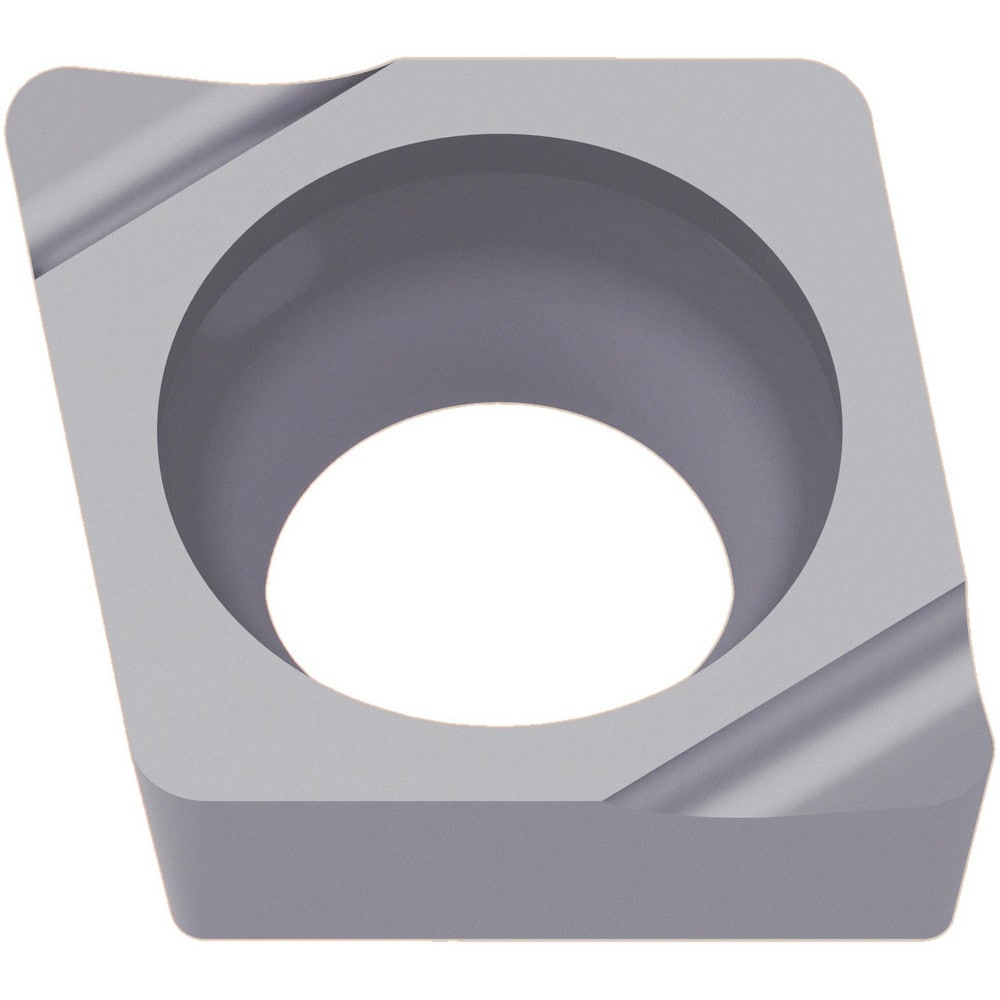

Boring Inserts; Insert Style: CCGT; Insert Size Code: 1.5; Insert Material: Cermet; Manufacturer Grade: NX2525; Inscribed Circle (Inch): 11/64
Item #: 55435648
Brand: Mitsubishi
Model #: 180953
Product Specifications
| Insert Style | CCGT |
| Insert Size Code | 1.5 |
| Insert Material | Cermet |
| Manufacturer Grade | NX2525 |
| Inscribed Circle (Inch) | 11/64 |
| Inscribed Circle (mm) | 4.37 |
| Inscribed Circle (Decimal Inch) | 0.1719 |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Relief Angle | 7.000 |
| Chipbreaker | F |
| Included Angle | 80 |
| Insert Shape | Rhombic |
| Number Of Cutting Edges | 2 |
| Coating/Finish | Uncoated |
| UNSPSC Code | 23242105 |
| Insert Style | CCGT |
| Insert Size Code | 1.5 |
| Insert Material | Cermet |
| Manufacturer Grade | NX2525 |
| Inscribed Circle (Inch) | 11/64 |
| Inscribed Circle (mm) | 4.37 |
| Inscribed Circle (Decimal Inch) | 0.1719 |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0039 |
| Corner Radius (mm) | 0.10 |
| Relief Angle | 7.000 |
| Chipbreaker | F |
| Included Angle | 80 |
| Insert Shape | Rhombic |
| Number Of Cutting Edges | 2 |
| Coating/Finish | Uncoated |
| UNSPSC Code | 23242105 |
| MSC Part # | 55435648 |
| Mfr Part # | 180953 |
| Country of Origin Country of Origin is subject to change | Japan |
