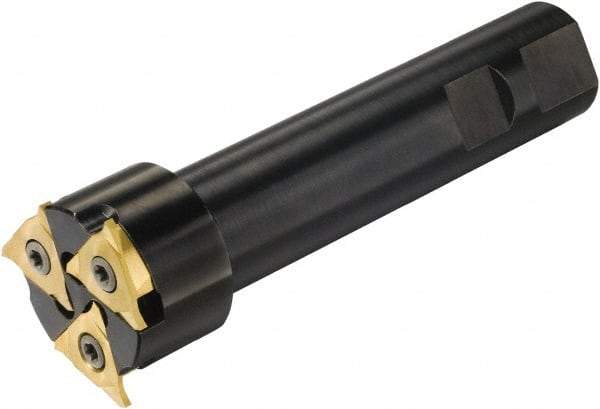

Sandvik Coromant - Weldon Connection, 0.0512" Cutting Width, 0.1181" Depth of Cut, 39mm Cutter Diam, 63/64" Hole Diam, Indexable Slotting Cutter - 63/64" Shank Diam, 328..Bxx Toolholder, Right Hand Cutting Direction
Item #: 49540925
Brand: Sandvik Coromant
Model #: 5758685
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Weldon |
| Cutting Width (mm) | 1.30 |
| Cutting Width (Decimal Inch) | 0.0512 |
| Cutting Width (Decimal Inch) | 0.051181 |
| Cutting Width (mm) | 1.3 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (Decimal Inch) | 0.11811 |
| Maximum Depth of Cut (mm) | 3 |
| Cutter Diameter (mm) | 39.00 |
| Cutter Diameter (Decimal Inch) | 1.5354 |
| Hole Diameter (mm) | 25.00 |
| Hole Diameter (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 0.984252 |
| Modular Connection Size | 25 |
| Toolholder Style | 328..Bxx |
| Series | CoroMill 328 |
| Number of Cutter Inserts | 2 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 19300 |
| Maximum RPM | 19300 |
| Through Coolant | No |
| Complete Insert Compatibility1 | 328R13-130 00-GM |
| Overall Height (mm) | 125.00 |
| Overall Height (Decimal Inch) | 4.9213 |
