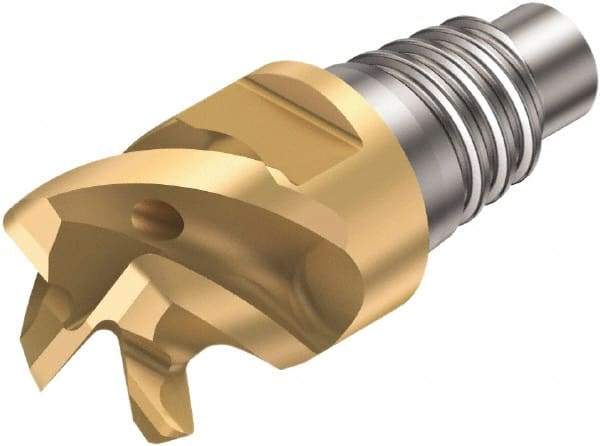

Sandvik Coromant - 316-SM Grade 1030 Carbide Milling Tip Insert - TiAlN Finish, 4 Flutes, 10mm Cutting Diam, 6mm Depth of Cut, 0.0591" Cnr Rad, 50° Helix
Item #: 49518053
Brand: Sandvik Coromant
Model #: 6223868
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Milling Tip Style | 316-SM |
| Material | Carbide |
| Cutting Diameter (mm) | 10 |
| Cutting Diameter (Decimal Inch) | 0.393701 |
| Manufacturer's Grade | 1030 |
| Depth of Cut (mm) | 6.00 |
| Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Corner Radius (Decimal Inch) | 0.059055 |
| Coating Process | PVD |
| Helix Angle | 50 |
| Style | 316..SM..C..P |
