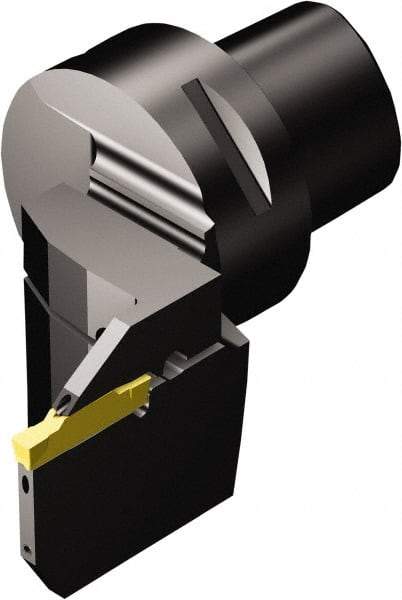

Sandvik Coromant - N123M2-1000-0008-GM Insert, 80mm Head Length, Modular Grooving Cutting Unit Head - Right Hand Cut, System Size C6, Through Coolant, Series CoroCut 1-2 Cutting Unit for Parting & Grooving
Item #: 49513914
Brand: Sandvik Coromant
Model #: 6537300
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | CoroCut 1-2 Cutting Unit for Parting and Grooving |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Insert Style | N123M2-1000-0008-GM |
| Head Length/Projection (mm) | 80.00 |
| Head Length/Projection (Decimal Inch) | 3.1496 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7716 |
| Complete Insert Compatibility | N123M2-1000-0008-GM |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
