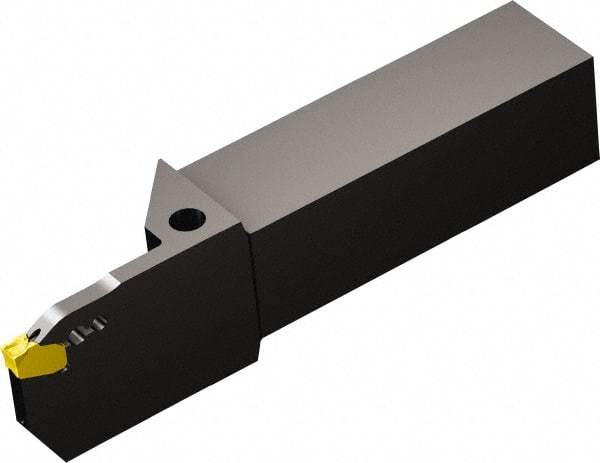

Sandvik Coromant - QD-R/LF..C..A, External, Left Hand, 60mm Max Depth of Cut, Indexable Grooving Tool Holder - QD-NK-0600-0003-CM Insert Compatibility, 40mm Shank Height, 40mm Shank Width, 250mm OAL, Through Coolant
Item #: 49511488
Brand: Sandvik Coromant
Model #: 6427708
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 2.3622 |
| Maximum Depth of Cut (mm) | 60.00 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Toolholder Style | QD-R/LF..C..A |
| Insert Compatibility | QD-NK-0600-0003-CM |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Series | CoroCut QD |
| Through Coolant | Through Coolant |
| Insert Seat Size | K |
| Maximum Hole Depth (Decimal Inch) | 3.2717 |
| Maximum Bore Depth (Decimal Inch) | 3.2717 |
| igrvh Maximum Bore Depth (mm) | 83.10 |
| Back of Bar to Cutting Edge (mm) | 250.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 9.8425 |
| Center to Cutting Edge (mm) | 40.33 |
| Center to Cutting Edge (Decimal Inch) | 1.5876 |
| Head Length (mm) | 83.10 |
| Head Length (Decimal Inch) | 3.2717 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NK-0600-0003-CM |
