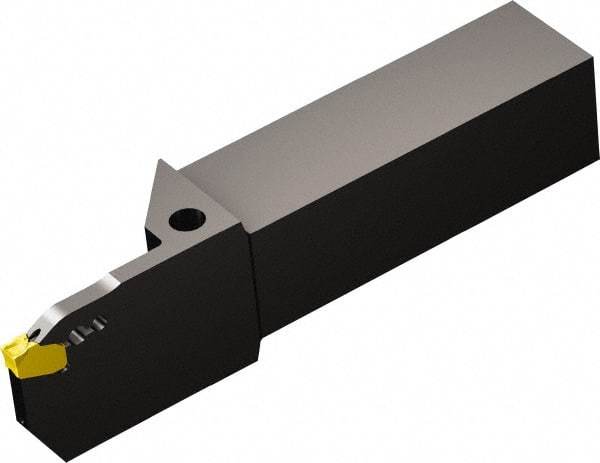

Sandvik Coromant - QD-R/LF..C..A, External, Right Hand, 63.5mm Max Depth of Cut, Indexable Grooving Tool Holder - QD-NL-0800-0004-CM Insert Compatibility, 38.1mm Shank Height, 38.1mm Shank Width, 254mm OAL, Through Coolant
Item #: 49511314
Brand: Sandvik Coromant
Model #: 6427739
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (mm) | 63.50 |
| Overall Length (mm) | 254.00 |
| Overall Length (Decimal Inch) | 10.0000 |
| Toolholder Style | QD-R/LF..C..A |
| Insert Compatibility | QD-NL-0800-0004-CM |
| Shank Height (mm) | 38.10 |
| Shank Height (Decimal Inch) | 1.5000 |
| Shank Width/Diameter (mm) | 38.10 |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Series | CoroCut QD |
| Through Coolant | Through Coolant |
| Insert Seat Size | L |
| Maximum Hole Depth (Decimal Inch) | 3.4842 |
| Maximum Bore Depth (Decimal Inch) | 3.4842 |
| igrvh Maximum Bore Depth (mm) | 88.50 |
| Back of Bar to Cutting Edge (mm) | 254.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 10.0000 |
| Center to Cutting Edge (mm) | 7.67 |
| Center to Cutting Edge (Decimal Inch) | 0.3022 |
| Head Length (mm) | 88.50 |
| Head Length (Decimal Inch) | 3.4842 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NL-0800-0004-CM |
