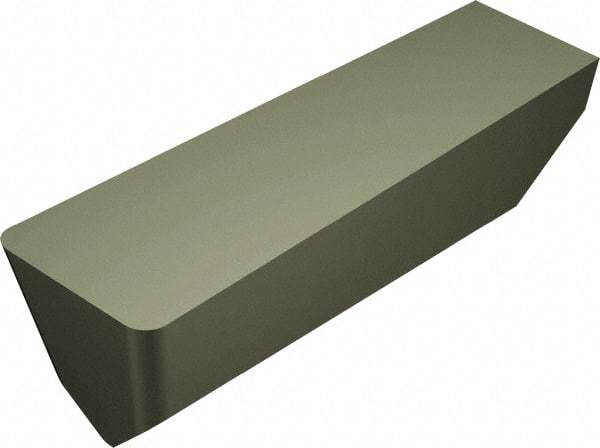

Sandvik Coromant - 6250CSG E Grade 670, 6.35mm Cutting Width Ceramic Grooving Insert - Neutral, Uncoated
Item #: 49507692
Brand: Sandvik Coromant
Model #: 5757128
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | CSG |
| Insert Size | 6250 |
| Material | Ceramic |
| Cutting Width (mm) | 6.35 |
| Cutting Width (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | 670 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.35 |
| Cutting Height (Decimal Inch) | 0.2500 |
| Relief Angle | 11 |
| Insert Seat Size | 3 |
| Chipbreaker | E |
| Overall Length (mm) | 19.05 |
| Overall Length (Decimal Inch) | 0.7500 |
| Series | T-Max |
| ISO Number | 150.23 0635 08E 670 |
| Insert Thickness (Decimal Inch) | 0.2500 |
