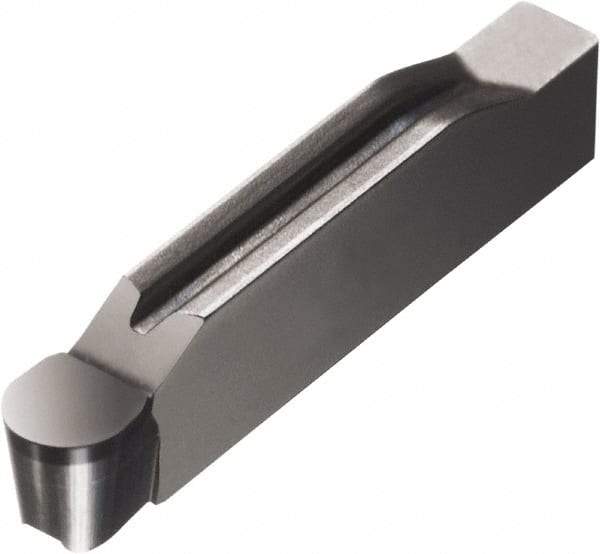

Sandvik Coromant - N123H1, 7025 Grade Cubic Boron Nitride Profiling Insert - Uncoated, 7° Relief Angle, 4.35mm Thick, 2mm Corner Radius
Item #: 49507635
Brand: Sandvik Coromant
Model #: 6256940
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Material | Cubic Boron Nitride |
| Insert Style | N123 |
| Insert Size | H1 |
| Manufacturer's Grade | 7025 |
| Thickness (mm) | 4.35 |
| Thickness (Decimal Inch) | 0.1713 |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Relief Angle | 7 |
| Coating | Uncoated |
| Insert Length (mm) | 25.05 |
| Insert Length (Decimal Inch) | 0.9862 |
| Chipbreaker | RE |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut 1-2 |
| Maximum Depth of Cut (Decimal Inch) | 0.0256 |
| Insert Holding Method | Clamp |
