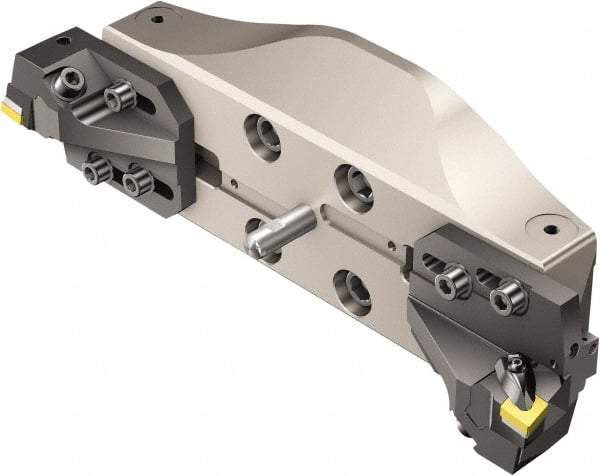

Sandvik Coromant - Right Hand Cut, 378mm Min Bore Diam, Size 40X Steel and Aluminium Modular Boring Cutting Unit Head - 4.685" Max Bore Depth, Through Coolant, Compatible with CNMG 643, CNMG 19 06 12
Item #: 49476344
Brand: Sandvik Coromant
Model #: 6352132
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40X |
| Series Name | CoroBore XL |
| Minimum Bore Diameter (mm) | 378.00 |
| Minimum Bore Diameter (Decimal Inch) | 14.8819 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 119.00 |
| Maximum Bore Depth (Decimal Inch) | 4.685 |
| Insert Style | CNMG 643; CNMG 19 06 12 |
| Head Length/Projection (mm) | 119.00 |
| Head Length/Projection (Decimal Inch) | 4.6850 |
| Toolholder Material | Steel and Aluminium |
| Through Coolant | Through Coolant |
| Connection Size | 40X |
| Maximum Bore Diameter (mm) | 460.00 |
| Maximum Bore Diameter (Decimal Inch) | 18.1102 |
| Head Diameter Excluding Insert (mm) | 40.00 |
| Head Diameter Excluding Insert (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | CNMG 19 06 12; CNMG 643 |
| Modular Connection Size | 40X |
| Includes | Bridge; Cartridge; Key; Slide; Stop plate set |
