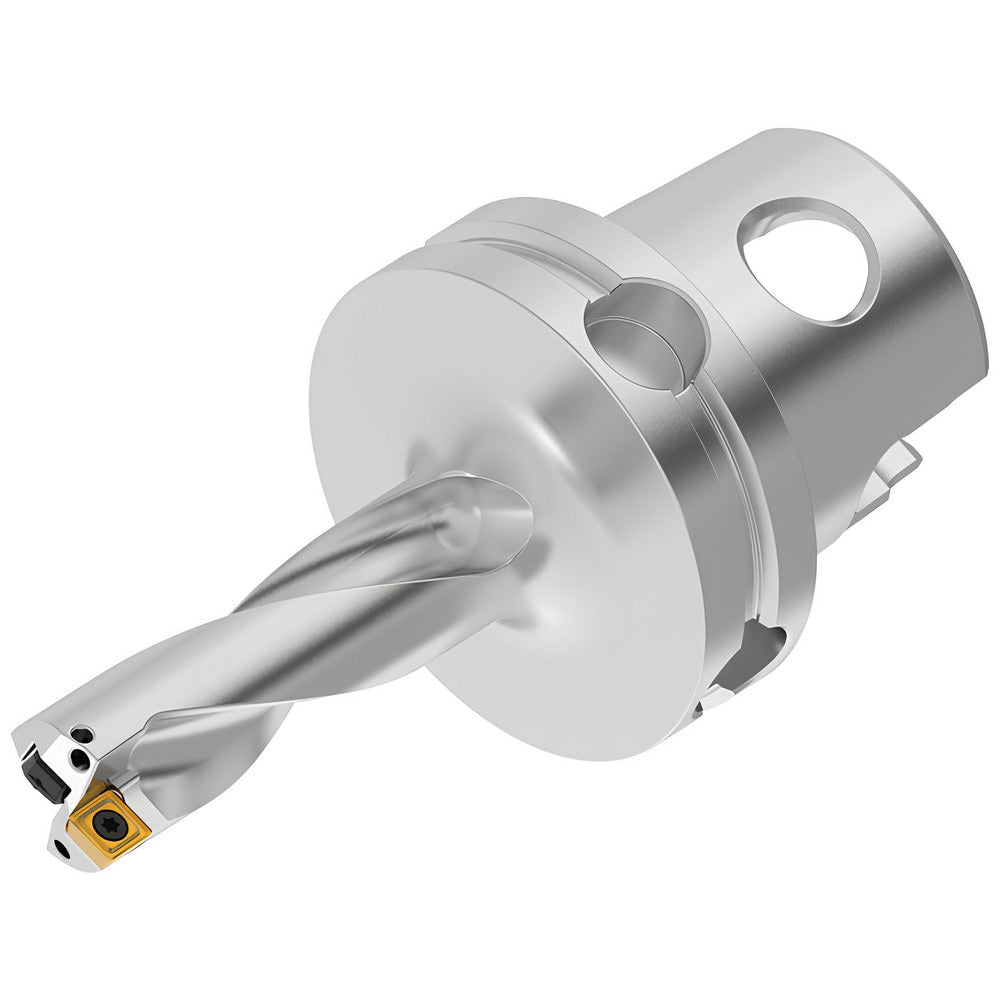

Indexable Insert Drill: DFPR0625R3KM40, 16.37 mm Max Dia, 47.62 mm Max Depth, 3xD, 40.00 mm Shank Dia
Item #: 04976155
Brand: Kennametal
Model #: 7031104
Product Specifications
| Compatible Drill Style | DFPR |
| Maximum Drill Diameter (mm) | 16.37 |
| Maximum Drill Diameter (Decimal Inch) | 0.6447 |
| Maximum Drill Depth (Inch) | 1-7/8 |
| Maximum Drill Depth (Decimal Inch) | 1.8750 |
| Maximum Drill Depth (mm) | 47.62 |
| Shank Type | Flange; Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 1.0000 to 2.0000 |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | DFPR |
| Compatible Insert Size Code | 050203; 050204 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 3.7643 |
| Series | DFPR |
| Flute Length (Decimal Inch) | 1.8750 |
| Flute Length (mm) | 58.62 |
| Body Length | 95.58 |
| Body Length (Decimal Inch) | 2.7800 |
| Shank Length (Decimal Inch) | 0.9843 |
| Shank Length (mm) | 24.95 |
| Modular Connection Size | KM40 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.2070x0.0940; 0.2090x0.0940 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | DFPR050203__I; DFPR050204__O |
| Collar Diameter (Decimal Inch) | 0.6012 |
| Collar Diameter (mm) | 15.27 |
| Insert Lock Screw | M2-0.4x4.5T6 |
| Coolant Through | Yes |
