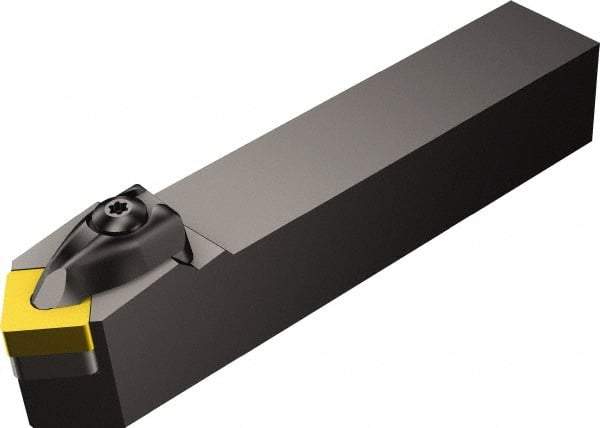

Sandvik Coromant - DSDN, Neutral Cut, 45° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, SNMG 12 04 08 Insert Compatibility, Series T-Max P
Item #: 49447667
Brand: Sandvik Coromant
Model #: 5733076
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | DSDN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | T-Max P |
| Lead Angle | 45 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | SNMG 12 04 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Back of Bar to Cutting Edge (mm) | 12.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5039 |
| Head Length (mm) | 36.50 |
| Head Length (Decimal Inch) | 1.4370 |
| Toolholder Material | Steel |
