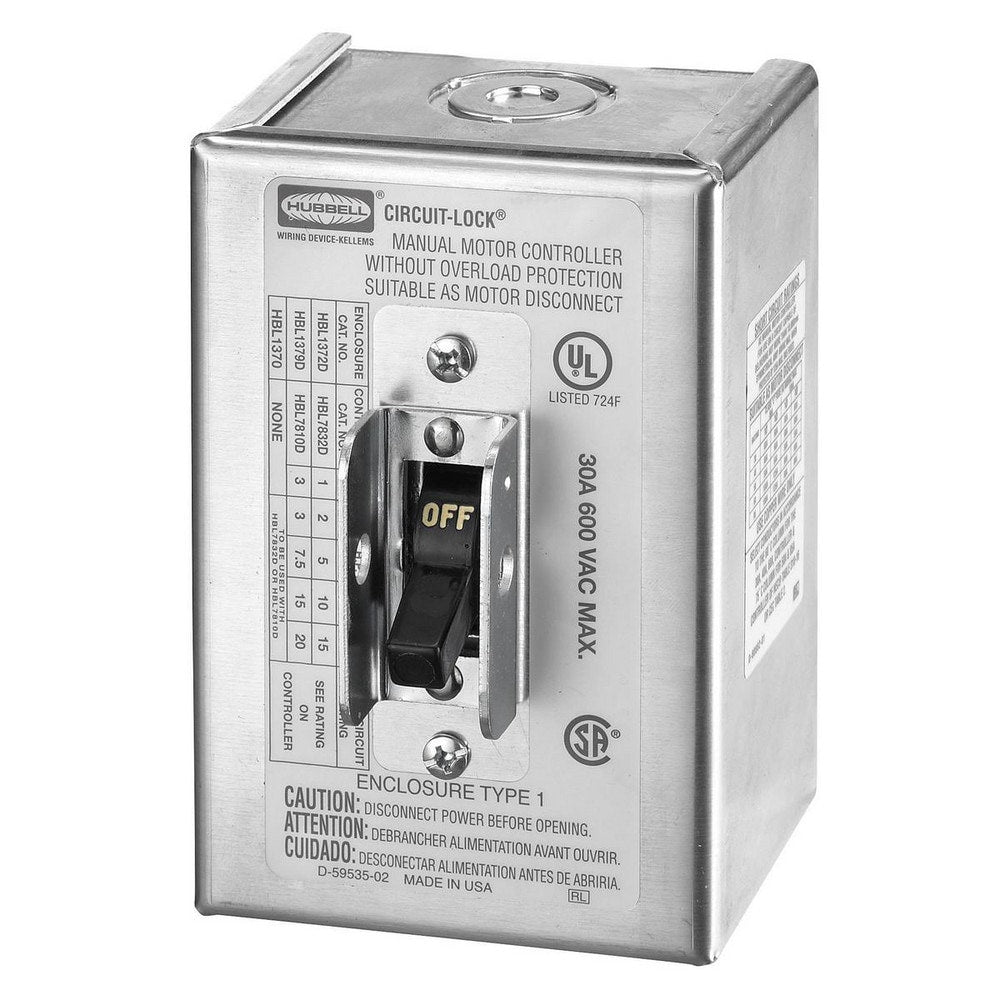

Circuit-Lock NEMA 1 Enclosure Toggle Switch Disconnect, 3-Pole, 30A
Item #: 04107090
Brand: Hubbell Wiring Device-Kellems
Model #: HBL1379
Product Specifications
| Enclosure Type | Enclosed |
| Fused | Non-Fused |
| Amperage | 30 mA |
| Voltage | 600V AC |
| Horsepower at 1 Phase | 3 @ 120 VAC |
| Horsepower at 3 Phase | 7.5 @ 240 VAC/15 @ 480 VAC/20 @ 600 VAC |
| Contact Form | 2PST |
| Number Of Poles | 3 |
| Overall Height (Decimal Inch) | 3.1500 |
| Overall Width (Decimal Inch - 4 Decimals) | 3.2 |
| Overall Depth (Decimal Inch) | 4.52 |
| Number Of Wires | 1 |
| Material | Aluminum |
| Standards | CSA-C22.2 No.14 Industrial Control File LR-46186; UL 508, Industrial Control File #E70402 |
| Nema Rating | 1 |
| Number Of Phases | 1 |
| UNSPSC Code | 39122205 |
