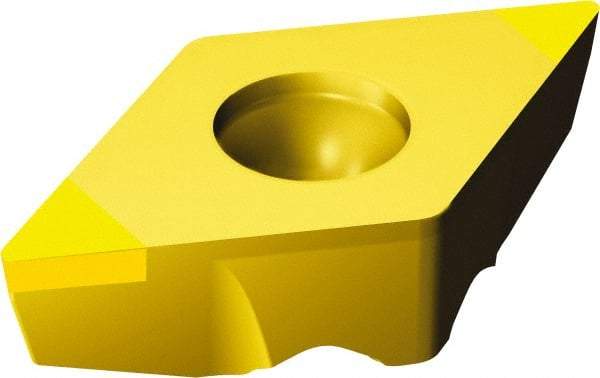

Sandvik Coromant - TRDC1304 Grade 7015 CBN Turning Insert - TiN Finish, 55° Triangle, 13mm Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 49422389
Brand: Sandvik Coromant
Model #: 5983713
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | TRDC |
| Insert Size | 1304 |
| Material | CBN |
| Length (mm) | 13.00 |
| Length (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 7015 |
| Coating | TiN |
| Hole Diameter (mm) | 3.70 |
| Hole Diameter (Decimal Inch) | 0.1457 |
| ISO Number | TRDC1304S01020F7015 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5983713 |
| Primary Workpiece Material | H |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn TR |
| Maximum Depth of Cut (mm) | 3.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.1220 |
| Insert Holding Method | Screw |
| Cutting Edge Style | Negative Land/ER Treated |
| Shape | Triangle |
