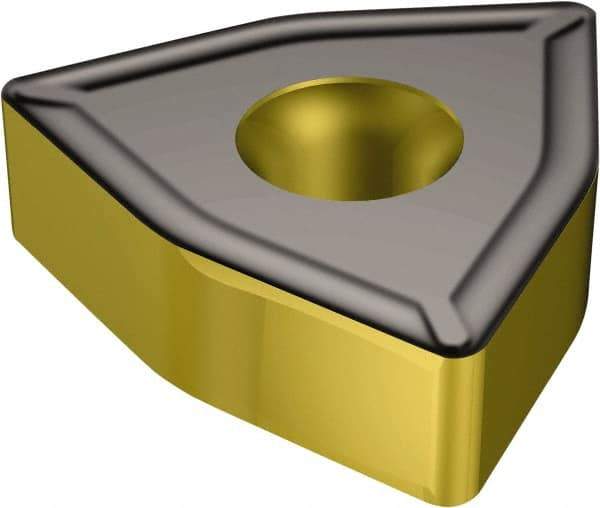

Sandvik Coromant - TNMX110662 Grade 4325 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 3/8" Inscr Circle, 1/4" Thick, 6.2mm Corner Radius
Item #: 49418833
Brand: Sandvik Coromant
Model #: 6532889
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMX |
| Insert Size | 110662 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 6.20 |
| Corner Radius (Decimal Inch) | 0.2441 |
| Manufacturer's Grade | 4325 |
| Coating | TiCN/Al2O3/TiN |
| Hole Diameter (mm) | 6.34 |
| Hole Diameter (Decimal Inch) | 0.2496 |
| ISO Number | TNMX110624325 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 6532889 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Peeling |
| Shape | Trigon |
