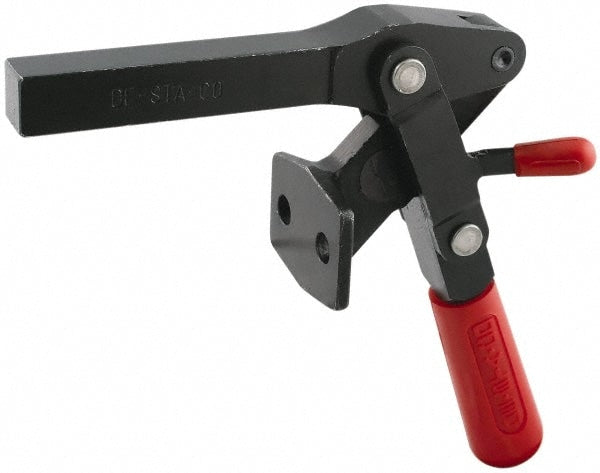

Brand: De-Sta-Co / Part #: 527-F
Item #: 03388139
Brand: De-Sta-Co
Model #: 527-F
Product Specifications
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (N) | 4450.00 |
| Holding Capacity (Lb.) | 1000.00 |
| Width Distance Between Mount Holes (mm) | 31.75 |
| Width Distance Between Mount Holes | 31.75 mm; 1.25 in |
| Width Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Height Under Bar (Decimal Inch) | 1.9200 |
| Height Under Bar (mm) | 48.77 |
| Overall Length (mm) | 206.76 |
| Overall Length (Decimal Inch) | 8.1400 |
| Overall Height (Decimal Inch) | 6.7800 |
| Overall Height (Mm - 5 Decimals) | 172.21 |
| Base Length (mm) | 46.48 |
| Base Width (Inch) | 2.2200 |
| Base Width | 56.39 |
| Handle Style | Straight |
| Material | Carbon Steel |
| Handle Material | Carbon Steel |
| Handle Color | Red |
| Mounting Hole Diameter (mm) | 10.41 |
| Mounting Hole Diameter (Decimal Inch) | 0.4100 |
| Bar Opening (Degrees) | 195 |
| Handle Movement (Degrees) | 65 |
| Maximum Mechanical Advantage | 12:01; 23:01 |
| Bar Width (Inch) | 3/4 |
| Bar Width (mm) | 19.05 |
| Bar Width (Decimal Inch) | 0.7500 |
| Bar Thickness (mm) | 19.00 |
| Bar Thickness (Decimal Inch) | 0.7480 |
| Front Of Base To Toggle Tip | 3.84 in |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 3.8400 |
| Front of Base To Tip Of Toggle Bar (mm) | 97.54 |
| Number Of Mounting Holes | 2 |
| Finish Coating | Zinc |
