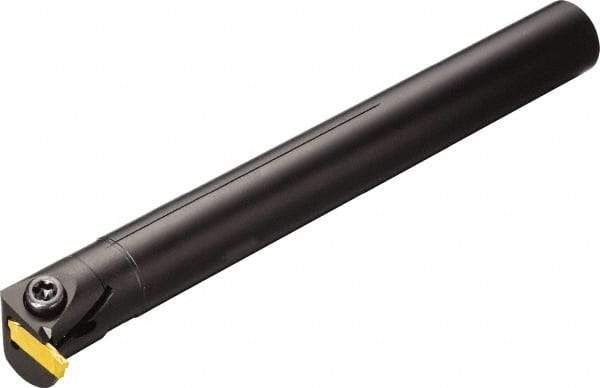

Sandvik Coromant - AG123, Internal, Right Hand, 6mm Max Depth of Cut, 3mm Max Groove Width, Indexable Grooving Tool Holder - N123..CM, N123..GM Insert Compatibility, 7.0866" OAL, Through Coolant
Item #: 49342579
Brand: Sandvik Coromant
Model #: 5739640
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1181 |
| Overall Length (Decimal Inch) | 7.0866 |
| Toolholder Style | AG123 |
| Insert Compatibility | N123..CM; N123..GM |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Coolant Hole Diameter (Decimal Inch) | 0.2360 |
| Insert Holding Method | Screw |
| Insert Seat Size | G |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Maximum Hole Depth (Decimal Inch) | 1.1810 |
| Maximum Bore Depth (Decimal Inch) | 1.1810 |
| igrvh Maximum Bore Depth (mm) | 30.00 |
| Center to Cutting Edge (mm) | 15.25 |
| Center to Cutting Edge (Decimal Inch) | 0.6004 |
| Head Length (Decimal Inch) | 1.1811 |
| Shank Length (Decimal Inch) | 5.9055 |
| Manufacturers Catalog Number | RAG123G024-12B |
| Toolholder Material | Steel |
| Complete Insert Compatibility | L123G2-0300-0501-CF; L123G2-0300-0502-CM; L123G2-0300-0503-CR; L123G2-0300-1001-CS; L123G2-0300-1501-CS; N123G1-0300-0002-CM; N123G1-0300-0002-GE; N123G1-0300-0003-CR; N123G1-0300-0003-TF; N123G1-030004S01025; N123G1-0318-0002-GE; N123G1-0400-RM; N123G2-0 |
| Minimum Bore Diameter (Decimal Inch) | 1.2600 |
| Minimum BoreDiameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 0.7500 |
