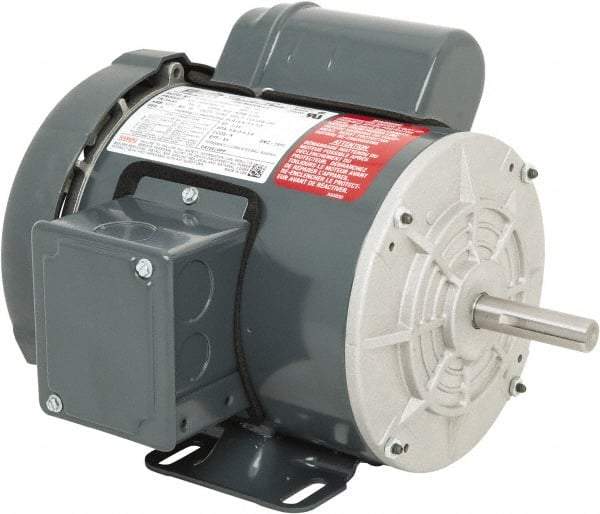

Leeson - 1/3 Max hp, 1,800 Max RPM, Electric AC DC Motor - 115/208-230 V Input, Single Phase, 56 Frame, 5/8" Shaft Diam, Rigid Base Mount, TEFC Enclosure
Item #: 49140544
Brand: Leeson
Model #: LM24789
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 1/3 |
| Minimum Horsepower | 0.333 |
| Name Plate RPMs | 1725 |
| Phase | Single |
| Input Voltage | 115/208-230 |
| Frame Size | 56 |
| Full Load Amperage | 3.3 |
| Mount Type | Rigid Base |
| Bearing Type | Double Sealed Ball Bearings |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Service Factor Rating | 1 |
| Frame Material | Steel |
| Insulation Class | B |
| Applications | Agriculture |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
