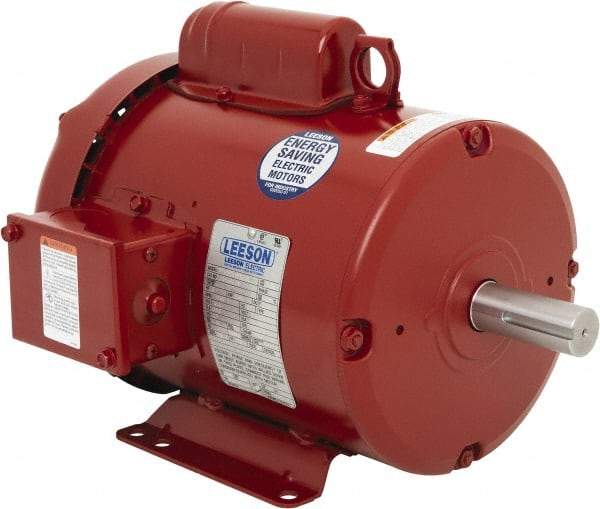

Leeson - 2 Max hp, 1,800 Max RPM, Electric AC DC Motor - 115/208-230 V Input, Single Phase, 182T Frame, 1-1/8" Shaft Diam, Rigid Base Mount, TEFC Enclosure
Item #: 49140254
Brand: Leeson
Model #: 131541.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 2 |
| Minimum Horsepower | 2 |
| Name Plate RPMs | 1740 |
| Phase | Single |
| Input Voltage | 115/208-230 |
| Frame Size | 182T |
| Full Load Amperage | 12.4 |
| Mount Type | Rigid Base |
| Bearing Type | Double Sealed Ball Bearings |
| Shaft Diameter (Decimal Inch) | 1.1250 |
| Service Factor Rating | 1 |
| Frame Material | Steel |
| Insulation Class | F |
| Applications | Agriculture |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
