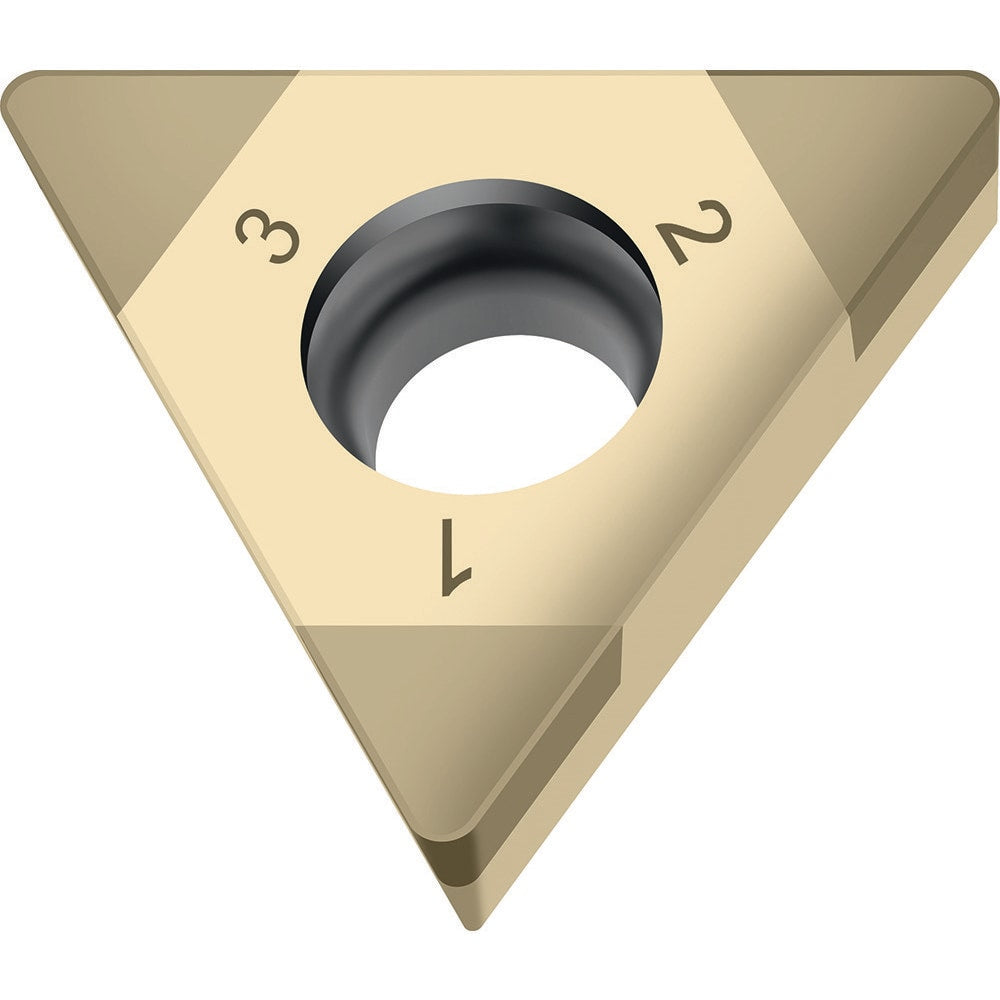

Turning Insert: TCGW21.52TM3 WBH20C, CBN
Item #: 91887703
Brand: Walter
Model #: 8306534
Product Specifications
| ANSI Insert Code | TCGW2(1.5)2 |
| ISO Insert Code | TCGW110208 |
| Relief Angle | 7.000 |
| Insert Style | TCGW |
| Corner Radius (mm) | 0.80 |
| Included Angle | 60.00 |
| Manufacturer Grade | WBH20C |
| Coating/Finish | CBN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 2.38 |
| Series | TCGW |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | CBN |
| Insert Shape | Triangle |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Maximum Depth of Cut (mm) | 0.50 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Length (mm) | 11.00 |
| Manufacturers Catalog Number | TCGW110208TM-3 WBH20C |
| Chip Breaker | TM |
| Width (mm - 2 Decimals) | 11.00 |
| ANSI Size Code | 2(1.5)2 |
| ISO Size Code | 110208 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 11 |
| Country of Origin | Germany |
