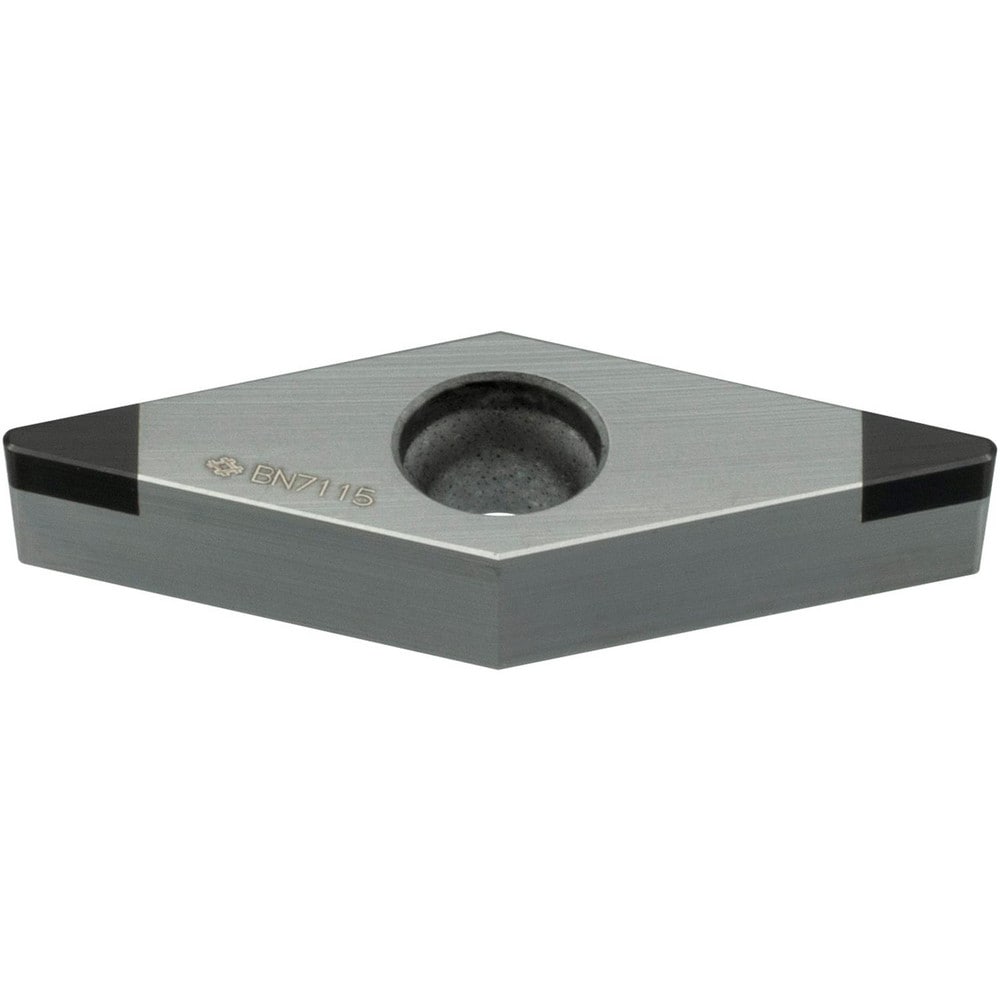

Brand: Sumitomo / Part #: 16V9FLM
Item #: 93085744
Brand: Sumitomo
Model #: 16V9FLM
Product Specifications
| Insert Style | VBGA |
| Insert Shape Code | V |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Coating/Finish | Uncoated |
| Manufacturer Grade | BN7115 |
| Corner Radius (mm) | 0.40 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| Maximum Depth of Cut (mm) | 0.50 |
| Inscribed Circle (mm) | 9.53 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Clearance Code | B |
| Tolerance Code | G |
| Relief Angle | 5.000 |
| Series | BN7115 |
| Manufacturers Catalog Number | 2NUVBGA331-BN7115 |
| Cutting Direction | Neutral |
| Chip Breaker | None |
| Width (Mm - 2 Decimals) | 16.60 |
