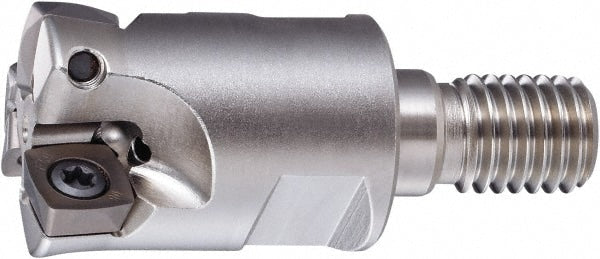

Indexable High-Feed End Mill: Modular Shank
Item #: 55702773
Brand: OSG
Model #: 52603002
Product Specifications
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Toolholder Style | PHC |
| Shank Type | Modular Connection |
| Compatible Insert Style | SXMT12? |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Modular Connection Size | M16 |
| Head Length (Decimal Inch) | 1.5750 |
| Projection (Decimal Inch) | 1.5750 |
| Weldon Flat | No |
| Lead Angle | 10 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Toolholder Style | PHC |
| Shank Type | Modular Connection |
| Compatible Insert Style | SXMT12? |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Modular Connection Size | M16 |
| Head Length (Decimal Inch) | 1.5750 |
| Projection (Decimal Inch) | 1.5750 |
| Weldon Flat | No |
| Lead Angle | 10 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| UNSPSC Code | 27112803 |
| MSC Part # | 55702773 |
| Mfr Part # | 52603002 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
