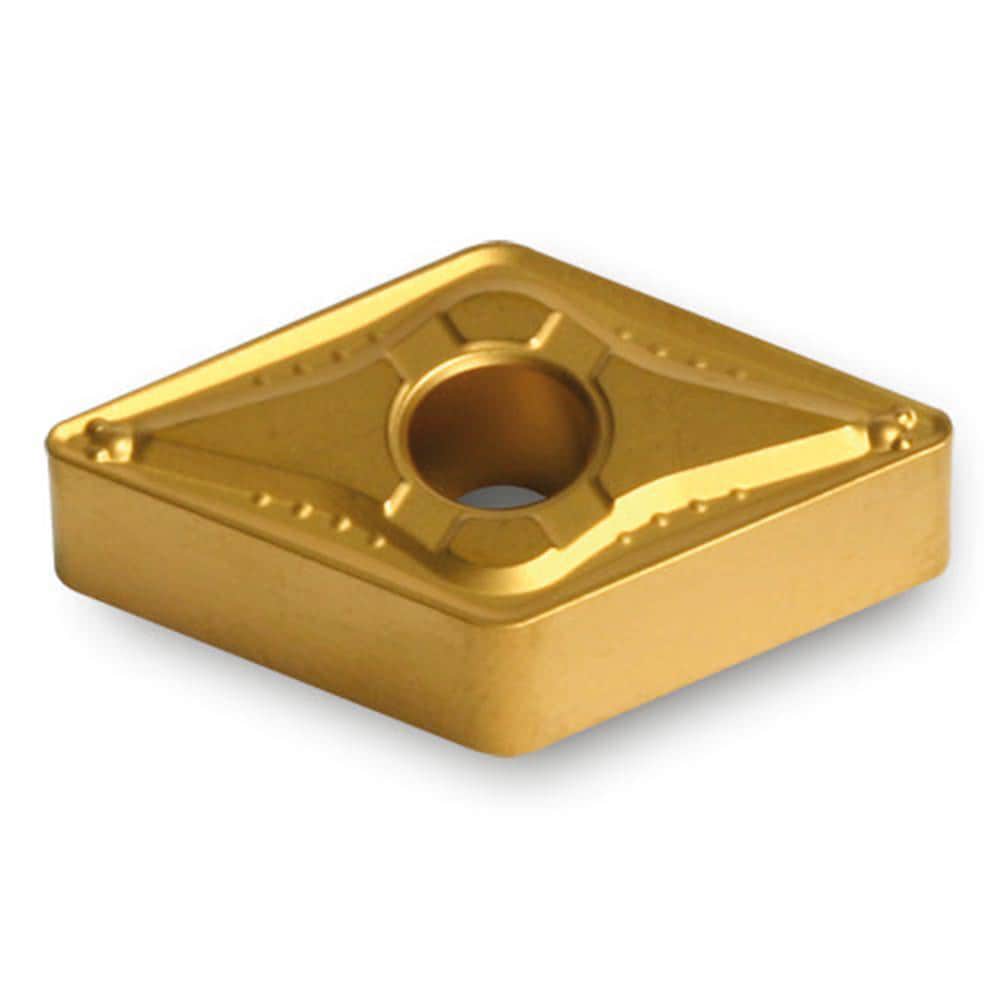

Turning Insert: DNMG433PC TT8105B, Carbide
Item #: 29901022
Brand: Ingersoll Cutting Tools
Model #: 6212489
Product Specifications
| ANSI Insert Code | DNMG433 |
| ISO Insert Code | DNMG150412 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 55 |
| Manufacturer Grade | TT8105B |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | DNMG |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6100 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | DNMG150412PC TT8105B |
| Chip Breaker | PC |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| ANSI Size Code | 433 |
| ISO Size Code | 150412 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 433 |
